please include step by step so I can understand the process
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
please include step by step so I can understand the process
please include step by step so I can understand the process

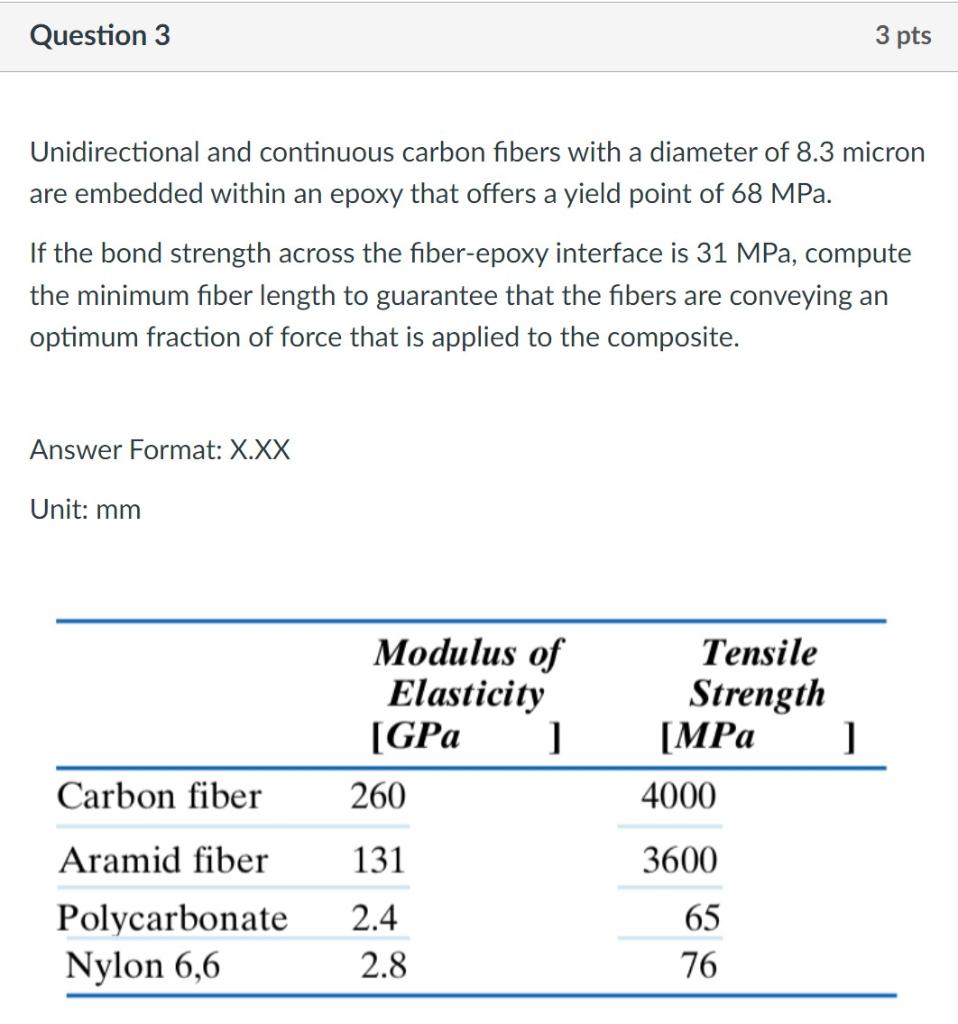

Question 3 3 pts Unidirectional and continuous carbon fibers with a diameter of 8.3 micron are embedded within an epoxy that offers a yield point of 68 MPa. If the bond strength across the fiber-epoxy interface is 31 MPa, compute the minimum fiber length to guarantee that the fibers are conveying an optimum fraction of force that is applied to the composite. Answer Format: X.XX Unit: mm Modulus of Elasticity [GPa ] 260 Tensile Strength [MPa 4000 ] Carbon fiber 131 3600 Aramid fiber Polycarbonate Nylon 6,6 2.4 2.8 65 76
Question 3 3 pts Unidirectional and continuous carbon fibers with a diameter of 8.3 micron are embedded within an epoxy that offers a yield point of 68 MPa. If the bond strength across the fiber-epoxy interface is 31 MPa, compute the minimum fiber length to guarantee that the fibers are conveying an optimum fraction of force that is applied to the composite. Answer Format: X.XX Unit: mm Modulus of Elasticity [GPa ] 260 Tensile Strength [MPa 4000 ] Carbon fiber 131 3600 Aramid fiber Polycarbonate Nylon 6,6 2.4 2.8 65 76
