Situation: This problem deals with the isothermal, steady-state compression of methanol at, 55 [°C] from its saturation

[answerhappygod]

Situation This Problem Deals With The Isothermal Steady State Compression Of Methanol At 55 C From Its Saturation 1 (35.68 KiB) Viewed 52 times

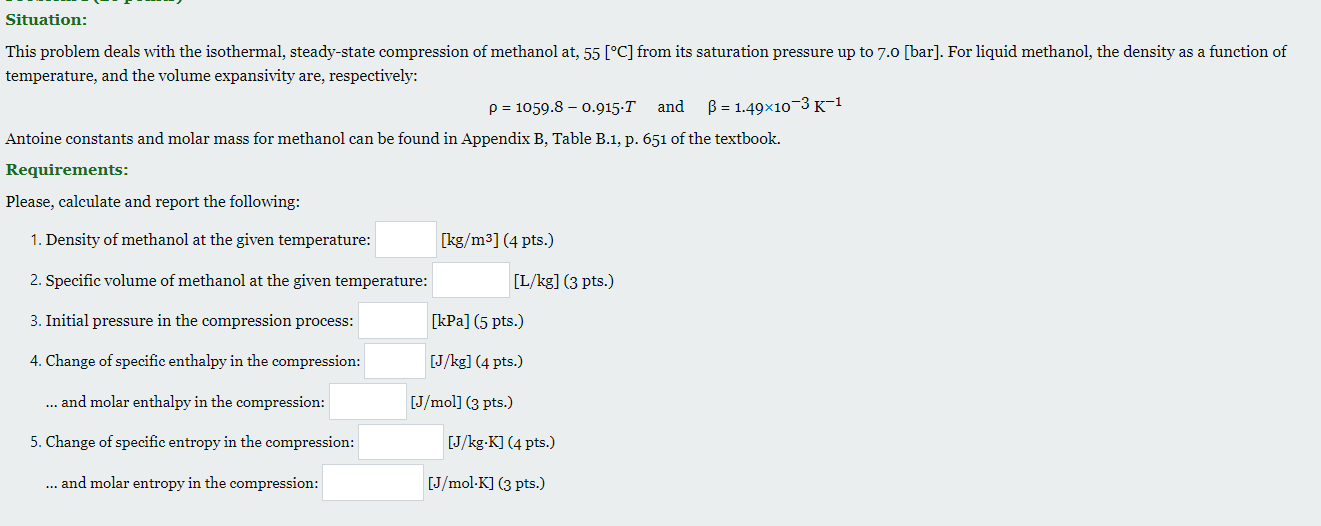

Situation: This problem deals with the isothermal, steady-state compression of methanol at, 55 [°C] from its saturation pressure up to 7.0 [bar]. For liquid methanol, the density as a function of temperature, and the volume expansivity are, respectively: P = 1059.8 -0.915.T and B = 1.49x10-3K-1 Antoine constants and molar mass for methanol can be found in Appendix B, Table B.1, p. 651 of the textbook. Requirements: Please, calculate and report the following: 1. Density of methanol at the given temperature: [kg/m3] (4 pts.) 2. Specific volume of methanol at the given temperature: [L/kg] (3 pts.) 3. Initial pressure in the compression process: [kPa] (5 pts.) 4. Change of specific enthalpy in the compression: [J/kg] (4 pts.) ... and molar enthalpy in the compression: [J/mol] (3 pts.) 5. Change of specific entropy in the compression: [J/kg.K] (4 pts.) ... and molar entropy in the compression: [J/mol-K] (3 pts.)
Latent heat of vaporization at the normal boiling point (AHA), and normal boiling point (In) ΔΗ Parameters for Antoine Eqn. Temp. Range Name Formula At А в с "C kJ/mol 1,/°C Acetone С3Н60 14.3145 2756.22 228.060 -26—77 29.10 56.2 Acetic acid C2H4O2 15.0717 3580.80 224.650 24142 23.70 117.9 Acetonitrile* CH3N 14.8950 3413.10 250.523 -27481 30.19 81.6 Benzene CH 13.7819 2726.81 217.572 6-104 30.72 80.0 iso-Butane C4H10 13.8254 2181.79 248.870 -8347 21.30 -11.9 n-Butane C4H10 13.6608 2154.70 238.789-73-19 22.44 -0.5 1-Butanol C4H100 15.3144 3212.43 182.739 37-138 43.29 117.6 2-Butanol C4H100 15.1989 3026.03 186.500 25-120 40.75 99.5 iso-Butanol C4H100 14.6047 2740.95 166.670 30128 41.82 107.8 tert-Butanol C4H100 14.8445 2658.29 177.650 10—101 39.07 82.3 Carbon tetrachloride CCIA 14.0572 2914.23 232.148 -14101 29.82 76.6 Chlorobenzene CHCI 13.8635 3174.78 211.700 29–159 35.19 131.7 1-Chlorobutane C4H.Cl 13.7965 2723.73 218.265 -17479 30.39 78.5 Chloroform CHCI 13.7324 2548.74 218.552 -23-84 29.24 61.1 Cyclohexane C6H12 13.6568 2723.44 220.618 9105 29.97 80.7 Cyclopentane CsH18 13.9727 2653.90 234.510 -3571 27.30 49.2 n-Decane C10H22 13.9748 3442.76 193.858 65-203 38.75 174.1 Dichloromethane CH2Cl213.9891 246393 223.240 -3860 28.06 39.7 Diethyl ether C4H100 14.0735 2511.29 231.200 -43-55 26.52 34.4 1,4-Dioxane CH,O2 15.0967 3579.78 240.337 20105 34.16 101.3 12-Eicosane C20H42 14.4575 4680.46 132.100 208-379 57.49 343.6 Ethanol С2Н60 16.8958 3795.17 230.918 3-96 38.56 78.2 Ethylbenzene CH10 13.9726 3259.93 212.300 33 163 35.57 136.2 Ethylene glycol C2H60 15.7567 4187.46 178.650 100222 50.73 197.3 n-Heptane CH16 13.8622 2910.26 216.432 4123 31.77 98.4 It-Hexane C6H14 13.8193 2696.04 224.317 -1992 28.85 68.7 Methanol CHO 16,5785 3638.27 239.500 -11-83 35.21 64.7 int
