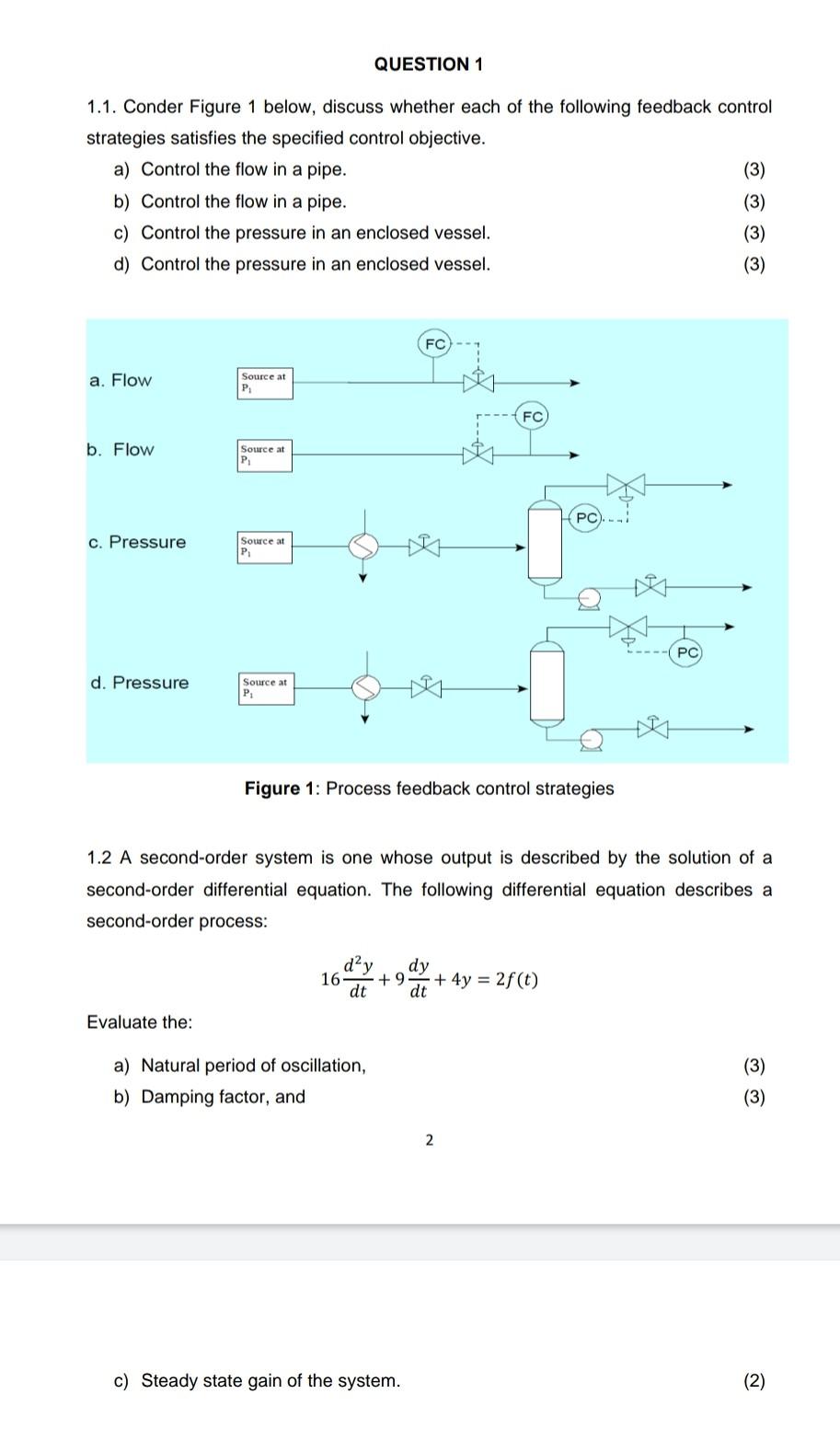

QUESTION 1 1.1. Conder Figure 1 below, discuss whether each of the following feedback control strategies satisfies the specified control objective. a) Control the flow in a pipe. (3) b) Control the flow in a pipe. (3) c) Control the pressure in an enclosed vessel. (3) d) Control the pressure in an enclosed vessel. (3) FC a. a. Flow Source at P FC b. Flow Source at P PC). c. Pressure Source at P P PC d. Pressure Source at P. P $ DA Figure 1: Process feedback control strategies 1.2 A second-order system is one whose output is described by the solution of a second-order differential equation. The following differential equation describes a second-order process: day dy 16 +9 + 4y = 2f(t) dt dt Evaluate the: a) Natural period of oscillation, b) Damping factor, and (3) (3) 2 c) Steady state gain of the system. (2)
