(8 points) A heat pump is used to warm a building in the winter. This system implements an ideal vapor-compression cycle

Post by answerhappygod »

8 Points A Heat Pump Is Used To Warm A Building In The Winter This System Implements An Ideal Vapor Compression Cycle 1
8 Points A Heat Pump Is Used To Warm A Building In The Winter This System Implements An Ideal Vapor Compression Cycle 1 (21.78 KiB) Viewed 56 times

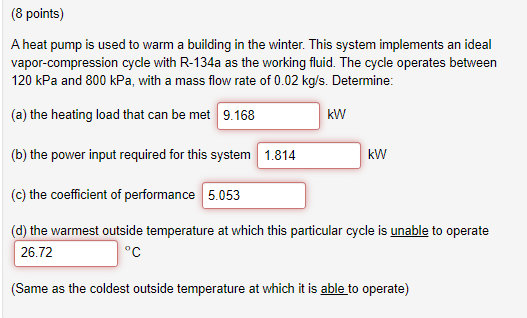

(8 points) A heat pump is used to warm a building in the winter. This system implements an ideal vapor-compression cycle with R-134a as the working fluid. The cycle operates between 120 kPa and 800 kPa, with a mass flow rate of 0.02 kg/s. Determine: (a) the heating load that can be met 9.168 kW (b) the power input required for this system 1.814 kW (c) the coefficient of performance 5.053 (d) the warmest outside temperature at which this particular cycle is unable to operate 26.72 °C (Same as the coldest outside temperature at which it is able to operate)
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
