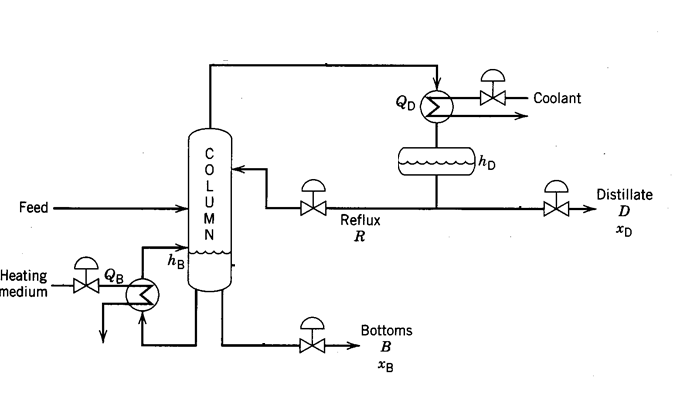

A distillation process with the control valves shown below ,the
feed to the distillation column enters from an upstream unit where
the feed composition and flow rate may possibly change with
time,
A Distillation Process With The Control Valves Shown Below The Feed To The Distillation Column Enters From An Upstream 1 (28.35 KiB) Viewed 46 times
For this distillation process:
1. What is the maximum number of controlled variables ? show
details
2. What is the number of degrees of freedom ? show detaols
XD QD Coolant с tho 002Z शि Feed XD U M N Reflux R Distillate D XD hв QB Heating medium HD Bottoms B XB
