Reactor Design I Abdulwahid Al-Hajjaj 2020-2021 Homework 1- Consider the gas phase reaction: A + B + 2C with rate law: -

[answerhappygod]

Reactor Design I Abdulwahid Al Hajjaj 2020 2021 Homework 1 Consider The Gas Phase Reaction A B 2c With Rate Law 1 (71.92 KiB) Viewed 42 times

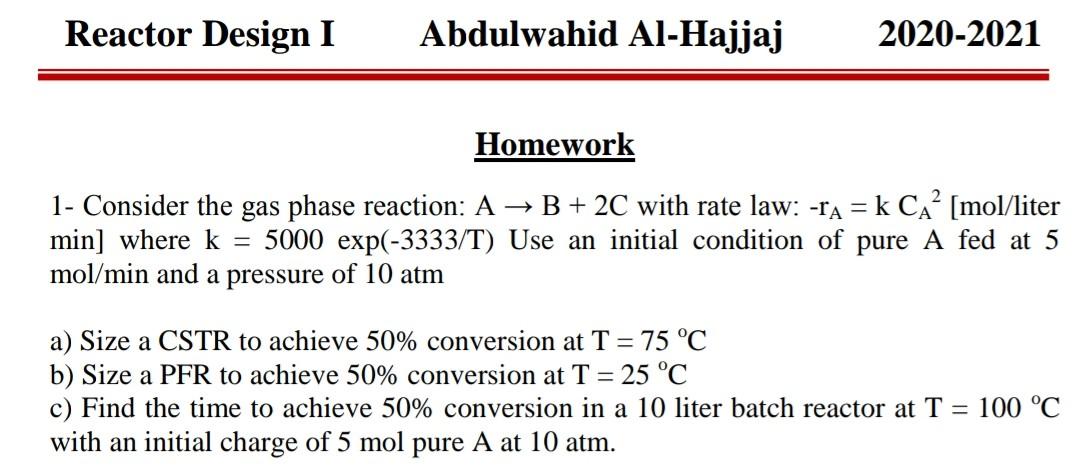

Reactor Design I Abdulwahid Al-Hajjaj 2020-2021 Homework 1- Consider the gas phase reaction: A + B + 2C with rate law: -ra = k CA? [mol/liter min] where k = 5000 exp(-3333/T) Use an initial condition of pure A fed at 5 mol/min and a pressure of 10 atm a) Size a CSTR to achieve 50% conversion at T = 75 °C b) Size a PFR to achieve 50% conversion at T = 25 °C c) Find the time to achieve 50% conversion in a 10 liter batch reactor at T = 100 °C with an initial charge of 5 mol pure A at 10 atm.
