QUESTION 2 40 points Save Answer An electrically heated stirred tank system of section 243 (page 23) of the Textbook is

[answerhappygod]

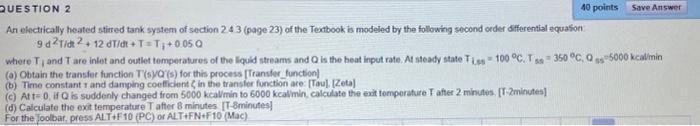

Question 2 40 Points Save Answer An Electrically Heated Stirred Tank System Of Section 243 Page 23 Of The Textbook Is 1 (16.46 KiB) Viewed 42 times

QUESTION 2 40 points Save Answer An electrically heated stirred tank system of section 243 (page 23) of the Textbook is modeled by the following second order differential equation 9021/42 . 12 T/c+T=T +0.050 where T and Tare infot and outlet temperatures of the liquid streams and is the heat input rate. A steady state is 100 °C. T 350 °C, 0,5000 kcalimin (a) Obtain the transfer function Toy (s) for this process [Transfer function (6) Time constant and damping coefficient in the transfer functionare (Toul. (Zeta) (C) AT 0, iis suddenly changed from 5000 kcalmin to 6000 kcalimin, calculate the exit tomperature T after 2 minutes [T-2minutes (d) Calculate the exit temperature T after 8 minutes [T-Sminutes For the foolbar, press ALT+F10 (PC) or ALT+FN+F10 Mac)
