The first time with SN :16
The second time with SN :25
And please solve step by step
And
In good handwriting
Thank you

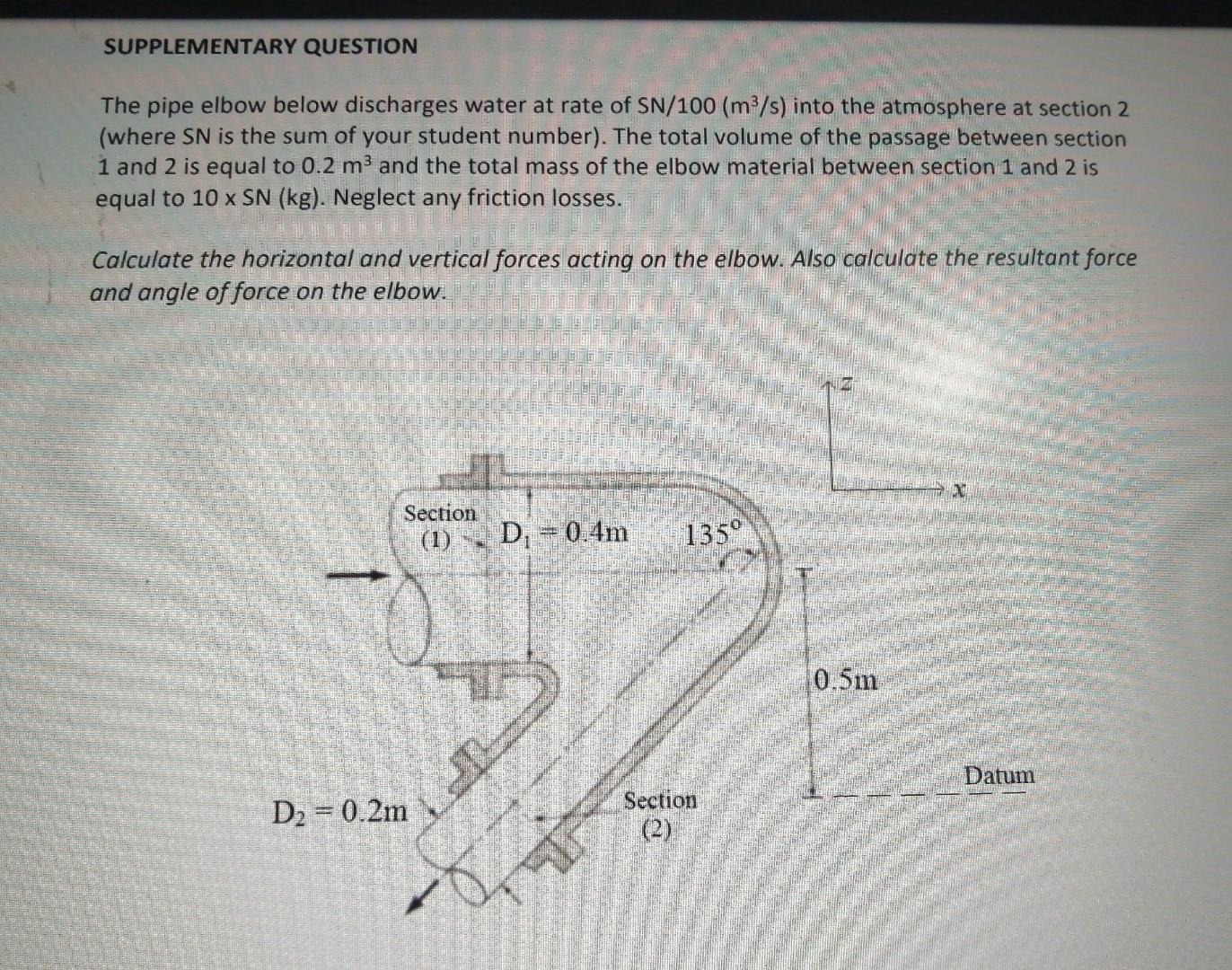

SUPPLEMENTARY QUESTION The pipe elbow below discharges water at rate of SN/100 (m/s) into the atmosphere at section 2 (where SN is the sum of your student number). The total volume of the passage between section 1 and 2 is equal to 0.2 m3 and the total mass of the elbow material between section 1 and 2 is equal to 10 x SN (kg). Neglect any friction losses. Calculate the horizontal and vertical forces acting on the elbow. Also calculate the resultant force and angle of force on the elbow. Section (1) D, = 0.4m 1350 0.5m Datum Section D2 = 0.2m e

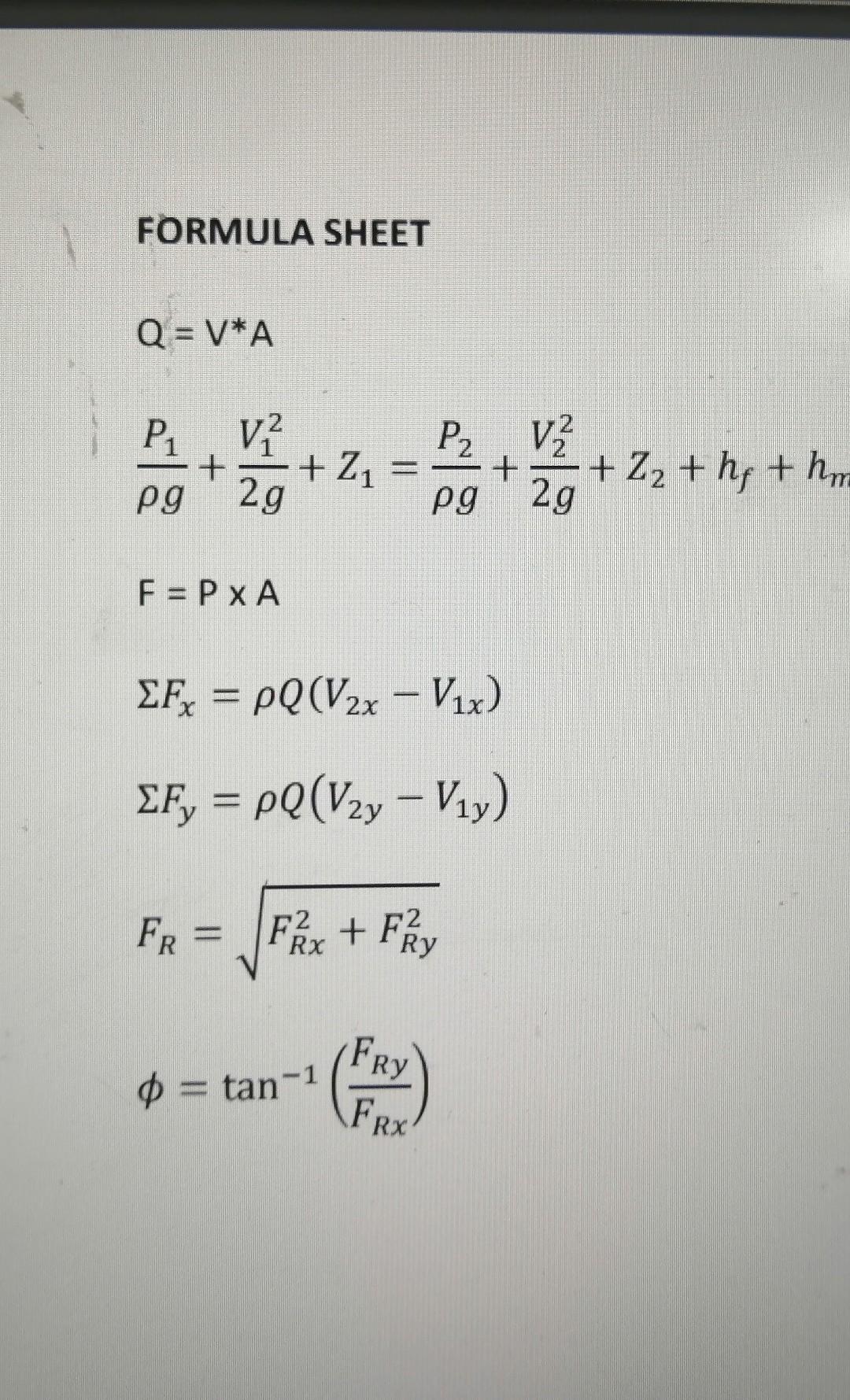

FORMULA SHEET Q = V*A P1 V2 P2 V2 + + Z2 = Z1 + + Z₂th, thm pg pg 29 2g F = PXA EFx = pQ(V2x – Vix) ΣF, EF, = PQ(V2y – V1y) == Fr = Fkx + Fly Rx Ry Fry = tan-1 FRx
