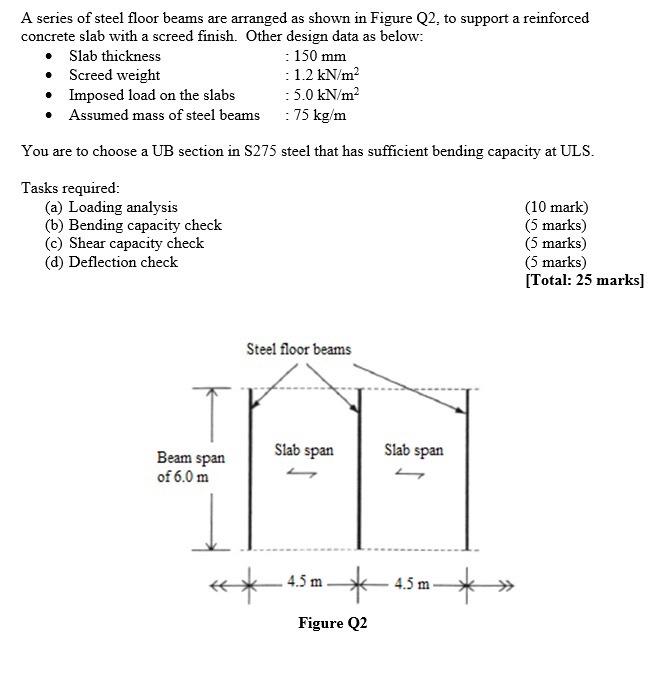

A series of steel floor beams are arranged as shown in Figure Q2, to support a reinforced concrete slab with a screed finish. Other design data as below: • Slab thickness - 150 mm • Screed weight : 1.2 kN/m2 Imposed load on the slabs :5.0 kN/m2 • Assumed mass of steel beams : 75 kg/m You are to choose a UB section in S275 steel that has sufficient bending capacity at ULS. Tasks required: (a) Loading analysis (10 mark) (b) Bending capacity check (5 marks) (c) Shear capacity check (5 marks) (d) Deflection check (5 marks) [Total: 25 marks) Steel floor beams Slab span Slab span Beam span of 6.0 m **45m * 4.5 m * Figure Q2
