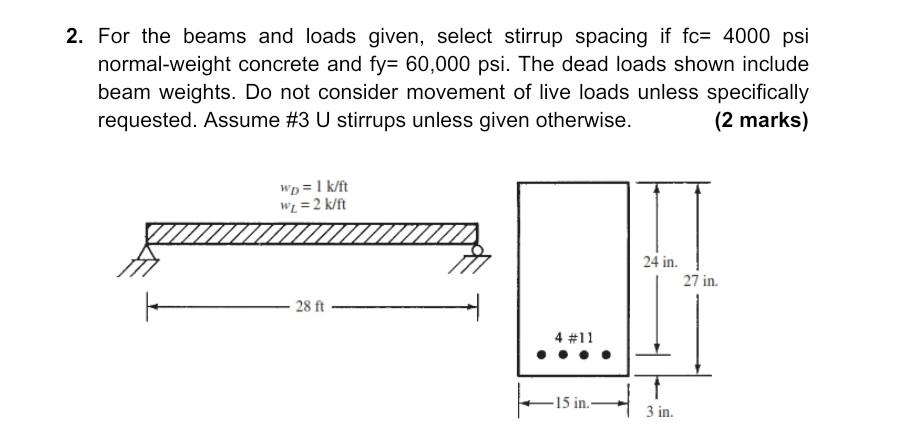

- 2 For The Beams And Loads Given Select Stirrup Spacing If Fc 4000 Psi Normal Weight Concrete And Fy 60 000 Psi The 1 (41.24 KiB) Viewed 43 times
2. For the beams and loads given, select stirrup spacing if fc= 4000 psi normal-weight concrete and fy= 60,000 psi. The
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
2. For the beams and loads given, select stirrup spacing if fc= 4000 psi normal-weight concrete and fy= 60,000 psi. The
2. For the beams and loads given, select stirrup spacing if fc= 4000 psi normal-weight concrete and fy= 60,000 psi. The dead loads shown include beam weights. Do not consider movement of live loads unless specifically requested. Assume #3 U stirrups unless given otherwise. (2 marks) Wp = 1 k/ft WL = 2 kft 24 in. 27 in. 28 ft 4 #11 15 in. 3 in.
