The crane has a trolley that sits on two girders. The girders are supported on each end by end trucks. Assume the trolle

Post by answerhappygod »

The Crane Has A Trolley That Sits On Two Girders The Girders Are Supported On Each End By End Trucks Assume The Trolle 1
The Crane Has A Trolley That Sits On Two Girders The Girders Are Supported On Each End By End Trucks Assume The Trolle 1 (108.02 KiB) Viewed 47 times

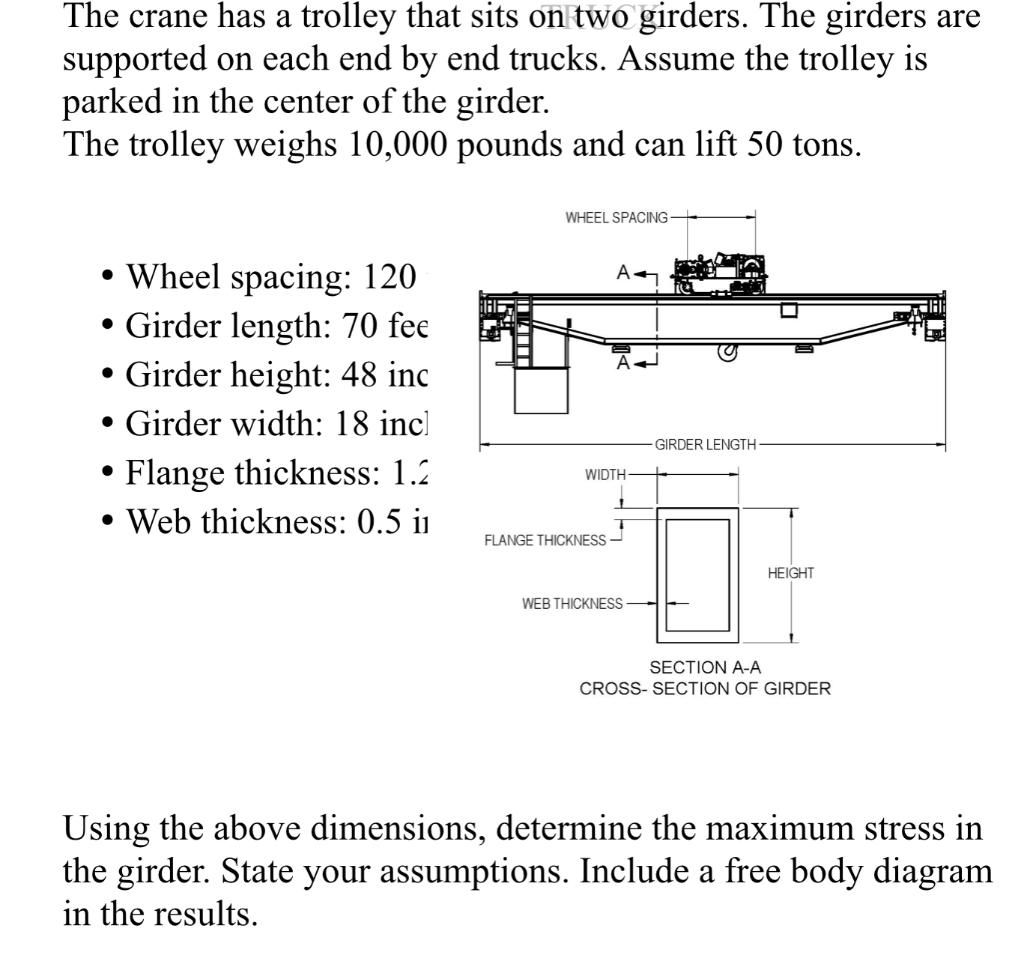

The crane has a trolley that sits on two girders. The girders are supported on each end by end trucks. Assume the trolley is parked in the center of the girder. The trolley weighs 10,000 pounds and can lift 50 tons. WHEEL SPACING • Wheel spacing: 120 • Girder length: 70 fee • Girder height: 48 inc Girder width: 18 inc) Flange thickness: 1.2 Web thickness: 0.5 ii . GIRDER LENGTH . WIDTH . 1 FLANGE THICKNESS HEIGHT WEB THICKNESS SECTION A-A CROSS-SECTION OF GIRDER Using the above dimensions, determine the maximum stress in the girder. State your assumptions. Include a free body diagram in the results. a
