Draw completely the approximate shear and moment diagrams for the beam loaded as shown. E is constant. Use Moment Distri

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Draw completely the approximate shear and moment diagrams for the beam loaded as shown. E is constant. Use Moment Distri

Post by answerhappygod »

Draw completely the approximate shear and moment diagrams for
the beam loaded as shown. E is constant. Use Moment
Distribution Method (MDM).

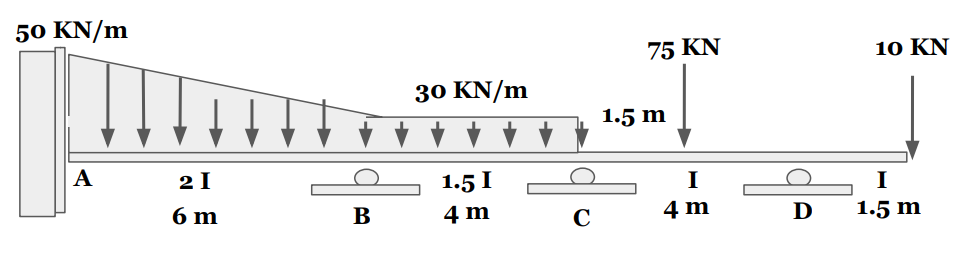

Draw Completely The Approximate Shear And Moment Diagrams For The Beam Loaded As Shown E Is Constant Use Moment Distri 1
Draw Completely The Approximate Shear And Moment Diagrams For The Beam Loaded As Shown E Is Constant Use Moment Distri 1 (23.55 KiB) Viewed 30 times
50 KN/m 75 KN 10 KN 30 KN/m 1.5 m A 21 1.5 I 4 m I 4 m I 1.5 m 6 m B с D
