Could u please find the sheer moment and bending moment
from free body diagram and corresponding equations only

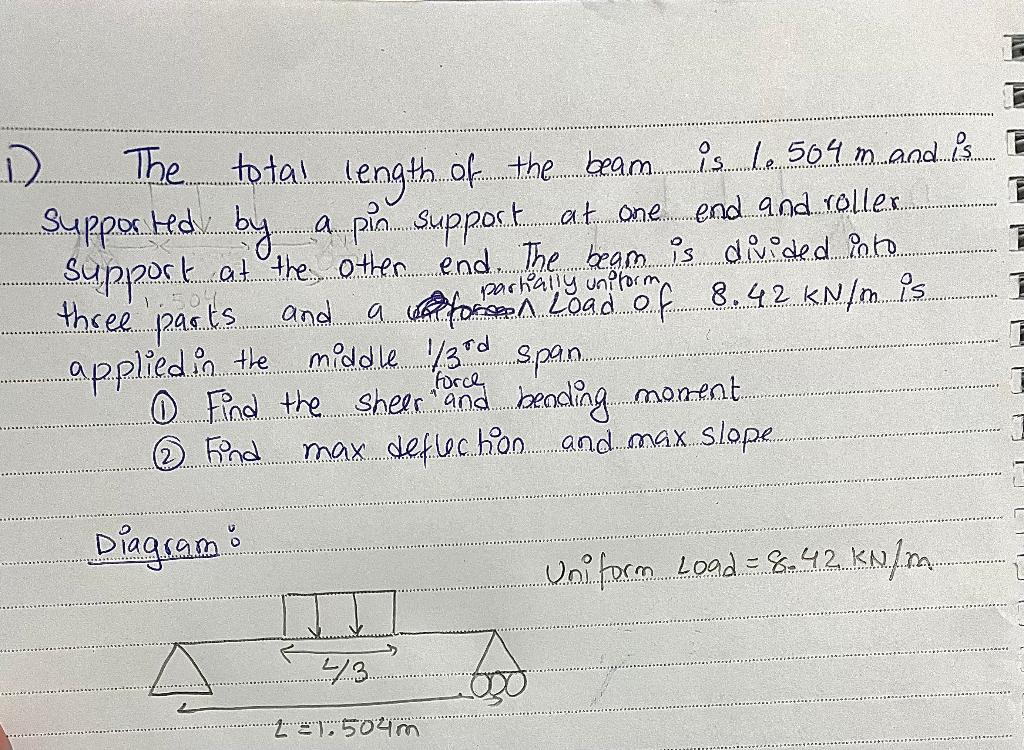

O D. The total length of the beam is de 504 mand.is Supported by a pră support at one end and roller support at the other end. The begin is divided into partially uniform three parts and a fan on board of 8.42 kN/m.is applied in the middle 13.00 .s.pan. . Find the sheer and bending moment. © Bond max deflection and max slope. od Diagram Uniform Load = 4:42. KN..ma 43. bo 22 504 m
