A simple curve of the proposed highway extension have a direction of tangents AB due North and BC with a bearing N 60 E.

Post by answerhappygod »

A Simple Curve Of The Proposed Highway Extension Have A Direction Of Tangents Ab Due North And Bc With A Bearing N 60 E 1
A Simple Curve Of The Proposed Highway Extension Have A Direction Of Tangents Ab Due North And Bc With A Bearing N 60 E 1 (115.25 KiB) Viewed 37 times

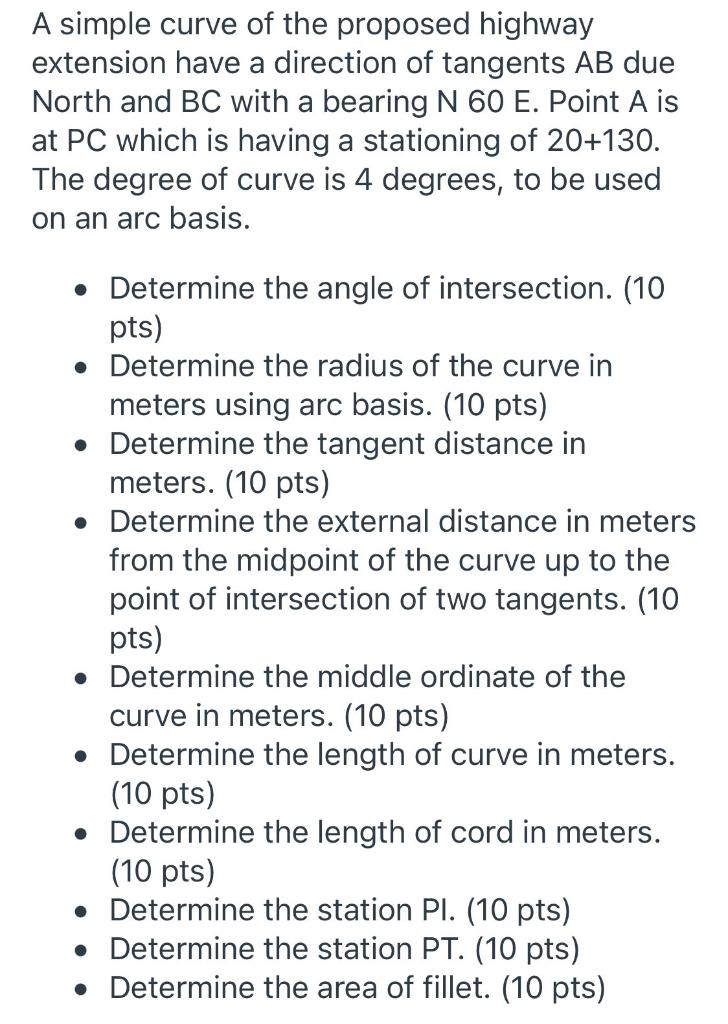

A simple curve of the proposed highway extension have a direction of tangents AB due North and BC with a bearing N 60 E. Point A is at PC which is having a stationing of 20+130. The degree of curve is 4 degrees, to be used on an arc basis. • Determine the angle of intersection. (10 pts) • Determine the radius of the curve in meters using arc basis. (10 pts) • Determine the tangent distance in meters. (10 pts) • Determine the external distance in meters from the midpoint of the curve up to the point of intersection of two tangents. (10 pts) • Determine the middle ordinate of the curve in meters. (10 pts) • Determine the length of curve in meters. (10 pts) • Determine the length of cord in meters. (10 pts) • Determine the station Pl. (10 pts) • Determine the station PT. (10 pts) • Determine the area of fillet. (10 pts)
