Part A The disk is subjected to a couple moment M. The end of the spring wraps around the periphery of the disk as the d

[answerhappygod]

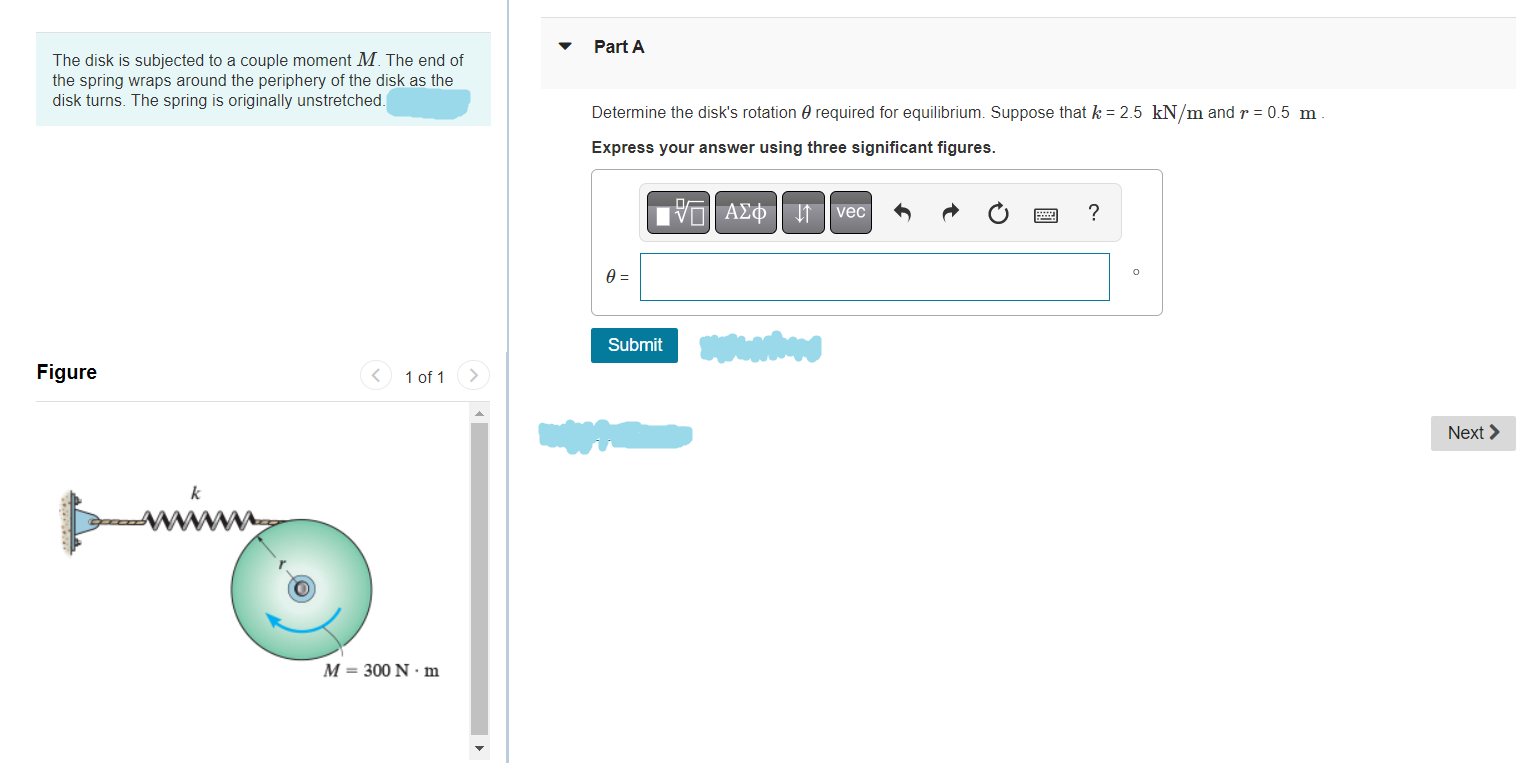

Part A The Disk Is Subjected To A Couple Moment M The End Of The Spring Wraps Around The Periphery Of The Disk As The D 1 (89.13 KiB) Viewed 54 times

Part A The disk is subjected to a couple moment M. The end of the spring wraps around the periphery of the disk as the disk turns. The spring is originally unstretched Determine the disk's rotation 0 required for equilibrium. Suppose that k = 2.5 kN/m and r = 0.5 m Express your answer using three significant figures. AEO vec ? A = O Submit Figure 1 of 1 Next > M = 300 Nm
