A concrete retaining wall (y=150 lb/ft) supporting a cohesionless backfill and surcharge pressure q=250 lb/ft? is shown

Post by answerhappygod »

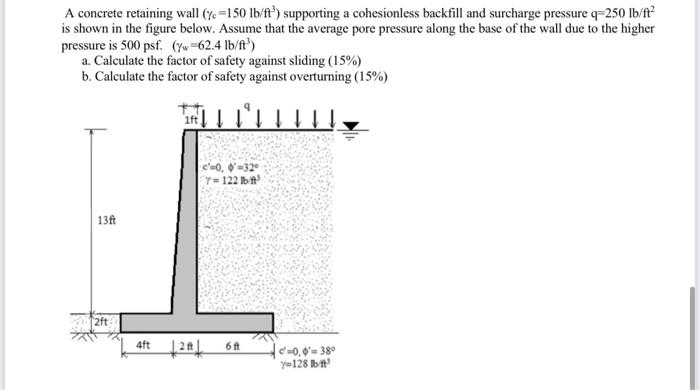

A Concrete Retaining Wall Y 150 Lb Ft Supporting A Cohesionless Backfill And Surcharge Pressure Q 250 Lb Ft Is Shown 1
A Concrete Retaining Wall Y 150 Lb Ft Supporting A Cohesionless Backfill And Surcharge Pressure Q 250 Lb Ft Is Shown 1 (28.75 KiB) Viewed 46 times
A concrete retaining wall (y=150 lb/ft) supporting a cohesionless backfill and surcharge pressure q=250 lb/ft? is shown in the figure below. Assume that the average pore pressure along the base of the wall due to the higher pressure is 500 psf. (Yw62.4 lb/ft) a. Calculate the factor of safety against sliding (15%) b. Calculate the factor of safety against overturning (15%) c'-0, 0-32° 122 bit 13 2ft 4ft 1241 66 C-0.0=38 Y128 lb
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
