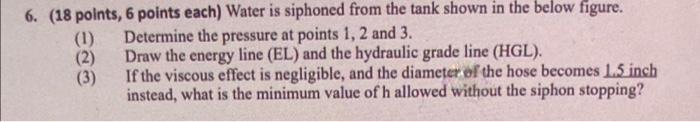

6. (18 points, 6 points each) Water is siphoned from the tank shown in the below figure. (1) Determine the pressure at points 1, 2 and 3. (2) Draw the energy line (EL) and the hydraulic grade line (HGL). (3) If the viscous effect is negligible, and the diameter of the hose becomes 1.5 inch instead, what is the minimum value of h allowed without the siphon stopping?

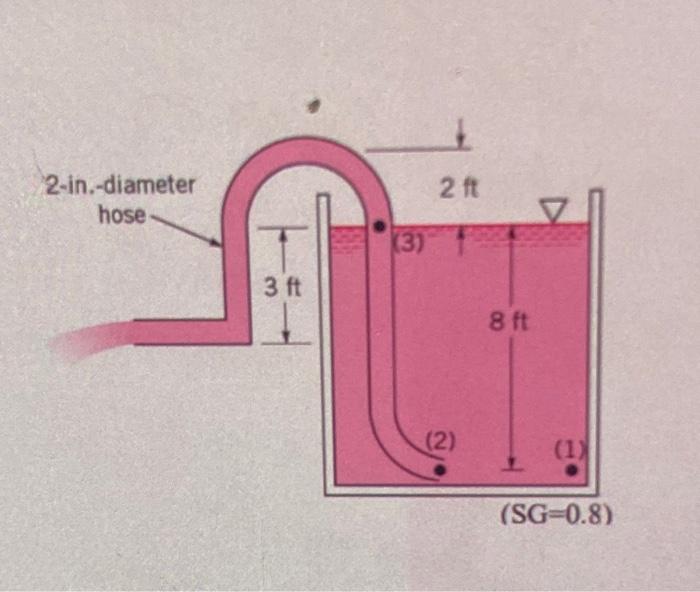

2-in.-diameter hose 2 ft (3) 3 ft 8 ft (2) (1) (SG=0.8)
