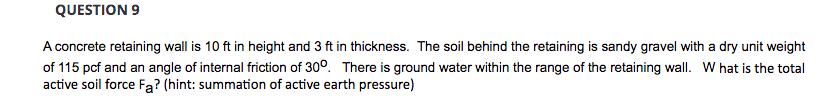

QUESTION 9 A concrete retaining wall is 10 ft in height and 3 ft in thickness. The soil behind the retaining is sandy gravel with a dry unit weight of 115 pcf and an angle of internal friction of 30°. There is ground water within the range of the retaining wall. What is the total active soil force Fa? (hint: summation of active earth pressure)

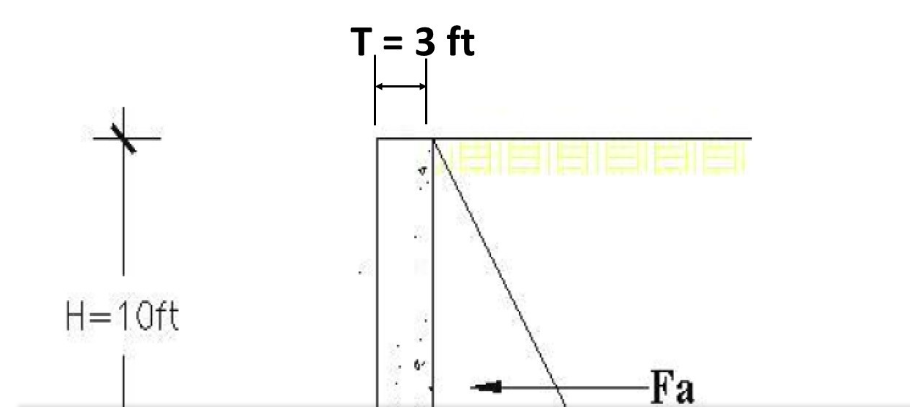

T = 3 ft H=10ft -Fa
A pa
O A.3.3 kips O B.2.6 kips O C. 1.9 kips O D. 1.5 kips
