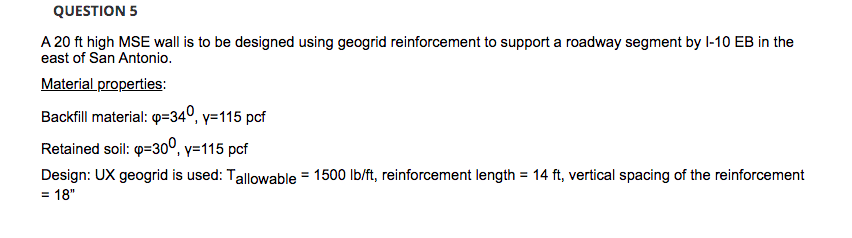

QUESTION 5 A 20 ft high MSE wall is to be designed using geogrid reinforcement to support a roadway segment by 1-10 EB in the east of San Antonio. Material properties Backfill material: «=34°, y=115 pcf Retained soil: v=300, y=115 pcf Design: UX geogrid is used: Tallowable = 1500 lb/ft, reinforcement length = 14 ft, vertical spacing of the reinforcement = 18"
14 ft - - 13 - - 12 I 18" - 1 . -- 1 11 1 - - - - - - - - - - - 10 I - 9 8 20 ft 7 -- 6 -- -- 5 ---
B - - - - A
What is the effective length of the 4th layer of reinforcement? O O A.9.2 ft O B.7.2 ft O C.3.2 ft O D. 10.8 ft O
