Figure B1 is a stoel pipe that carries a discharge of 0.0283m/sec of water. The head loss between locations (1) and (2)

Post by answerhappygod »

Figure B1 Is A Stoel Pipe That Carries A Discharge Of 0 0283m Sec Of Water The Head Loss Between Locations 1 And 2 1
Figure B1 Is A Stoel Pipe That Carries A Discharge Of 0 0283m Sec Of Water The Head Loss Between Locations 1 And 2 1 (16.03 KiB) Viewed 52 times

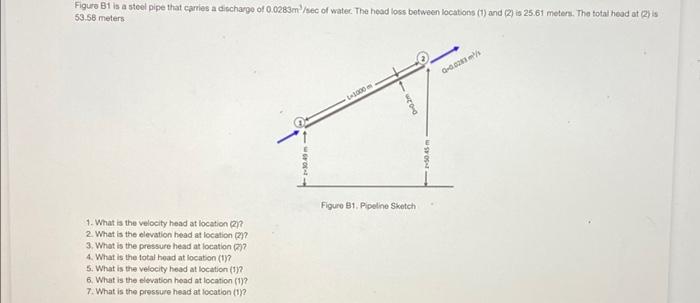

Figure B1 is a stoel pipe that carries a discharge of 0.0283m/sec of water. The head loss between locations (1) and (2) is 25.61 meters. The total head at (2) is a 53.58 meters G-0. -1000 Dm SYON Figure 31. Pipeline Sketch 1. What is the velocity head at location 27 2. What is the elevation head at location (2) 3. What is the pressure head at location (2) 4. What is the total head at location (1) 5. What is the velocity head at location (1) 6. What is the elevation head at location (1) 7. What is the pressure head at location (172
