From the given figure, a ladder with 5 m long, weighs 500.000 N/m, is resting against a smooth wall and on a rough floor

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

From the given figure, a ladder with 5 m long, weighs 500.000 N/m, is resting against a smooth wall and on a rough floor

Post by answerhappygod »

From The Given Figure A Ladder With 5 M Long Weighs 500 000 N M Is Resting Against A Smooth Wall And On A Rough Floor 1
From The Given Figure A Ladder With 5 M Long Weighs 500 000 N M Is Resting Against A Smooth Wall And On A Rough Floor 1 (54.61 KiB) Viewed 45 times

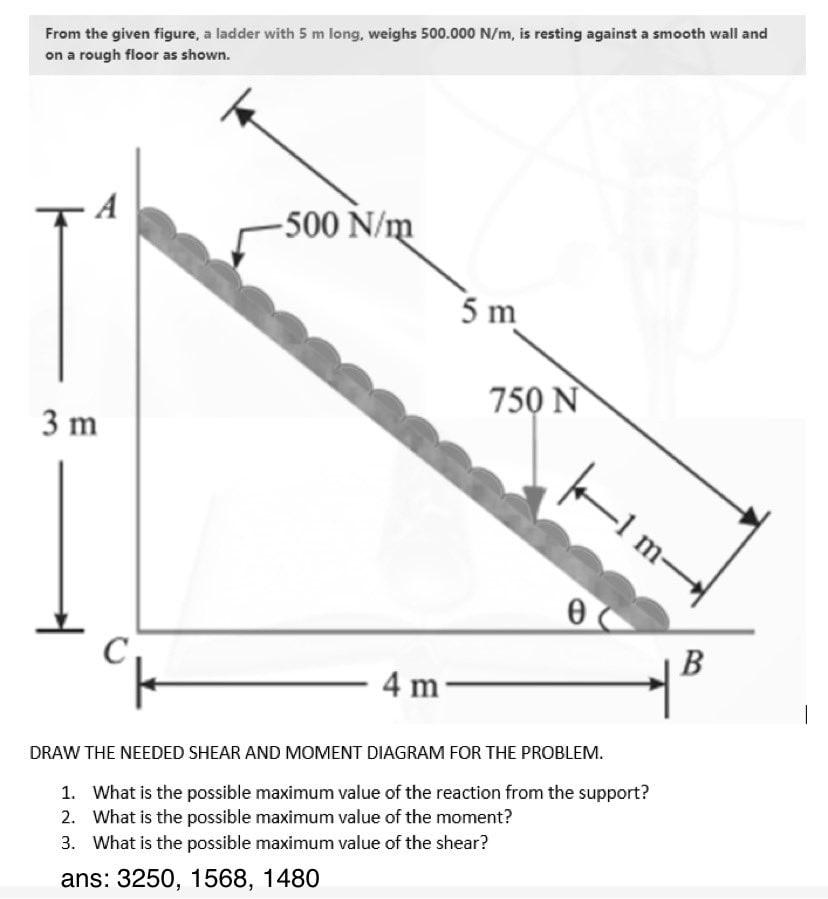

From the given figure, a ladder with 5 m long, weighs 500.000 N/m, is resting against a smooth wall and on a rough floor as shown. A -500 N/m 5 m 750 N 3 m Km 0 B 4 m + DRAW THE NEEDED SHEAR AND MOMENT DIAGRAM FOR THE PROBLEM. 1. What is the possible maximum value of the reaction from the support? 2. What is the possible maximum value of the moment? 3. What is the possible maximum value of the shear? ans: 3250, 1568, 1480
