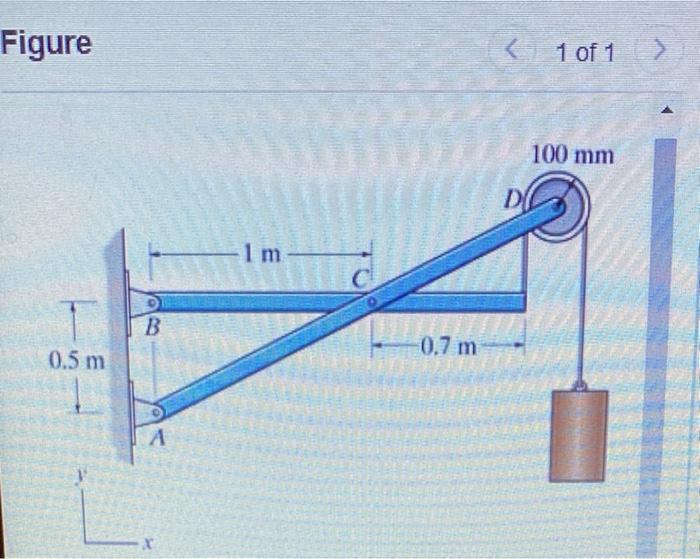

Figure < 1 of 1 100 mm D 1 m B 0.7 m 0.5 m

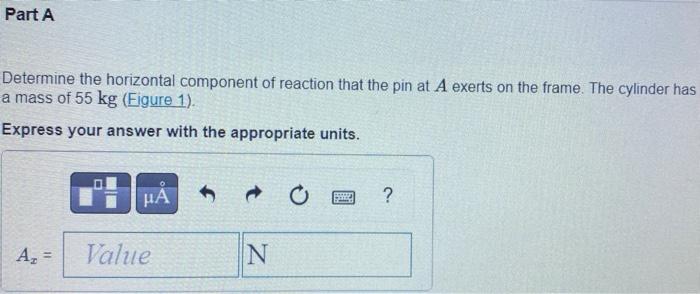

Part A Determine the horizontal component of reaction that the pin at A exerts on the frame. The cylinder has a mass of 55 kg (Eigure 1). Express your answer with the appropriate units. uÅ ? A, = Value N

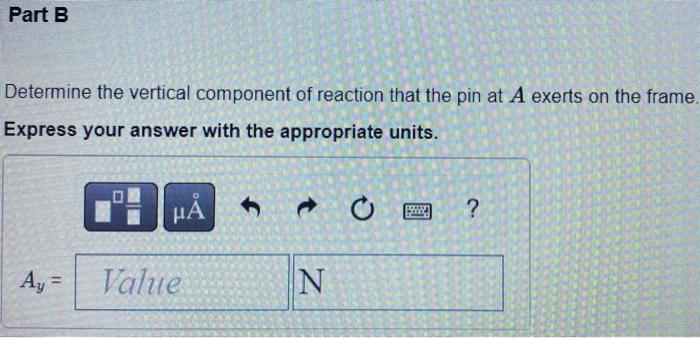

Part B Determine the vertical component of reaction that the pin at A exerts on the frame. Express your answer with the appropriate units. HA www ? Ay= Value N

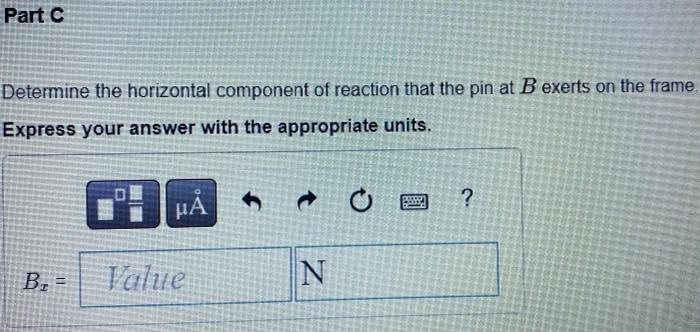

Part C Determine the horizontal component of reaction that the pin at B exerts on the frame. Express your answer with the appropriate units. P ? HA B Talue N

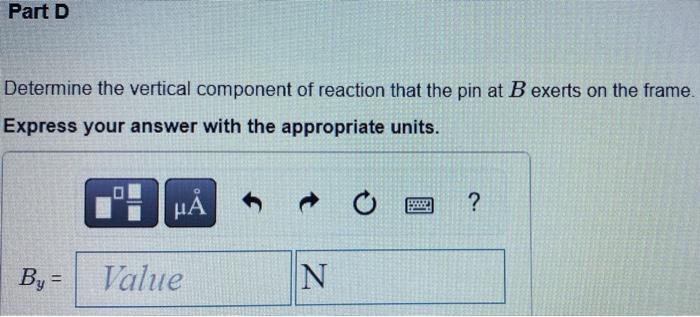

Part D Determine the vertical component of reaction that the pin at B exerts on the frame. Express your answer with the appropriate units. HA ? By = Value N

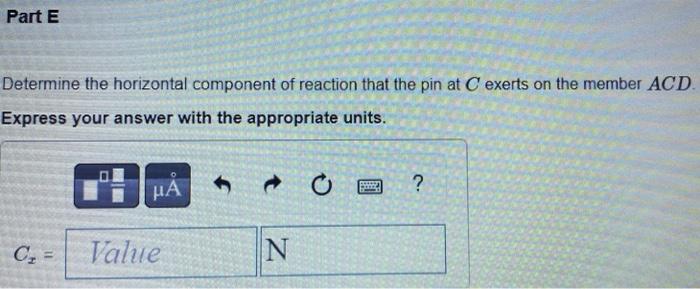

Part E Determine the horizontal component of reaction that the pin at C exerts on the member ACD. Express your answer with the appropriate units. НА ? CZ - Value N

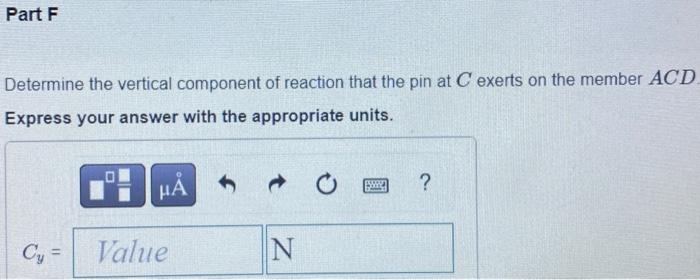

Part F Determine the vertical component of reaction that the pin at C exerts on the member ACD Express your answer with the appropriate units. HA ? Cy = Value N
