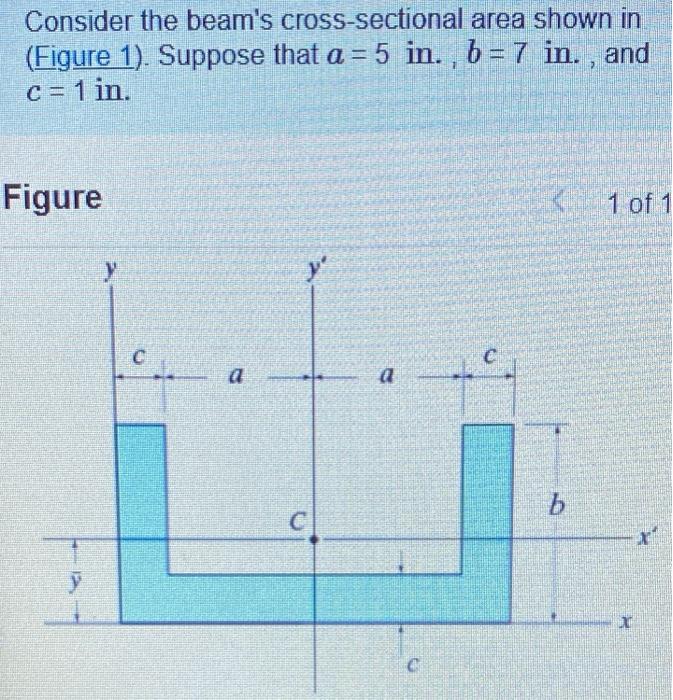

Consider the beam's cross-sectional area shown in (Figure 1). Suppose that a = 5 in. , b = 7 in., and c = 1 in. Figure 1

[answerhappygod]

Consider The Beam S Cross Sectional Area Shown In Figure 1 Suppose That A 5 In B 7 In And C 1 In Figure 1 1 (107.59 KiB) Viewed 53 times

Consider The Beam S Cross Sectional Area Shown In Figure 1 Suppose That A 5 In B 7 In And C 1 In Figure 1 2 (40.29 KiB) Viewed 53 times

Consider The Beam S Cross Sectional Area Shown In Figure 1 Suppose That A 5 In B 7 In And C 1 In Figure 1 3 (36.99 KiB) Viewed 53 times

Consider the beam's cross-sectional area shown in (Figure 1). Suppose that a = 5 in. , b = 7 in., and c = 1 in. Figure 1 of 1 1 y C a a b. C y 1 X

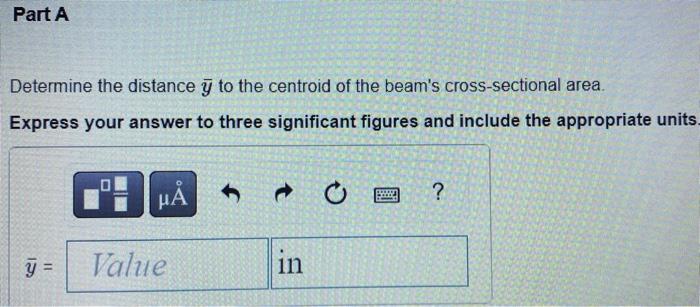

Part A Determine the distance y to the centroid of the beam's cross-sectional area. Express your answer to three significant figures and include the appropriate units. BU μΑ ? y = Value in

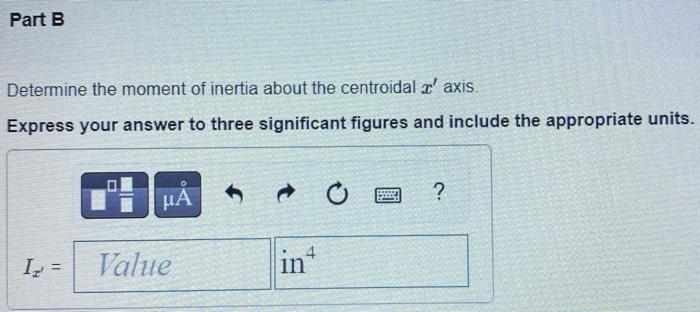

Part B Determine the moment of inertia about the centroidal ' axis Express your answer to three significant figures and include the appropriate units. ? μΑ 4. IL = Value in-
