A 20 ft high MSE wall is to be designed using geogrid reinforcement to support a roadway segment by l-10 EB in the east
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
A 20 ft high MSE wall is to be designed using geogrid reinforcement to support a roadway segment by l-10 EB in the east

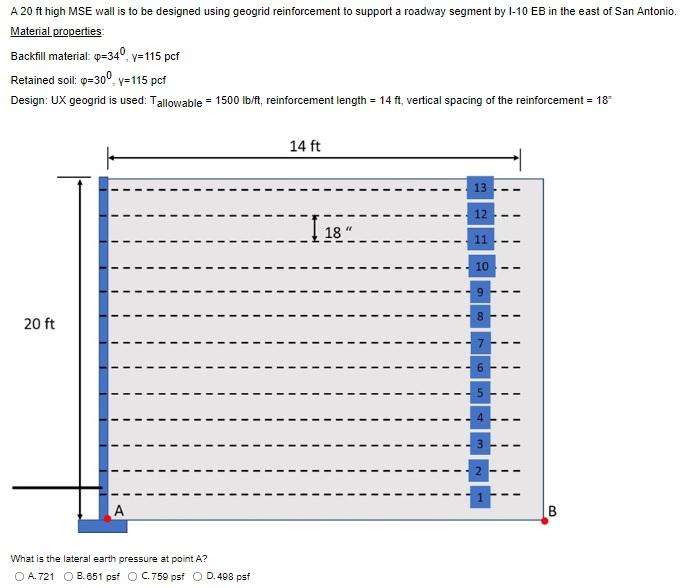

A 20 ft high MSE wall is to be designed using geogrid reinforcement to support a roadway segment by l-10 EB in the east of San Antonio. Material properties Backfill material: p=34° v=115 pcf Retained soil: 9=300.y=115 pcf Design: UX geogrid is used: Tallowable = 1500 lb/ft, reinforcement length = 14 ft, vertical spacing of the reinforcement = 18 14 ft 13 12 1 18." 11 10 i 9 B 20 ft I i I i II i II 7 6 II II 1 1 1 1 1 II ! ! ! ! ! ! 3 A B What is the lateral earth pressure at point A? O A.721 O 3.651 psf O C. 759 psf O D.498 psf
