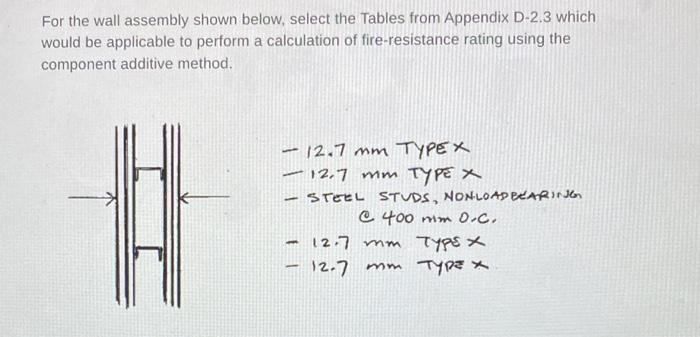

For the wall assembly shown below, select the Tables from Appendix D-2.3 which would be applicable to perform a calculation of fire-resistance rating using the component additive method. - 12.7 mm TYPEX - 12.7 mm TYPE X STEEL STUDS, NONLOAD BEARING C 400 mim 0-c. 12.7 mm Type X 12.7 mm TYPE X

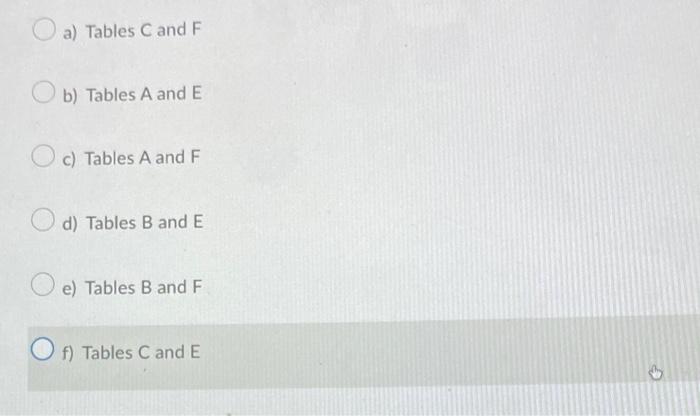

a) Tables C and F Ob) Tables A and E Oc) Tables A and F d) Tables B and E e) Tables B and F О. f) Tables C and E
