A wooden beam is fabricated by bolting together three members. The cross-sectional dimensions are shown. The 6-mm-diamet

Post by answerhappygod »

A Wooden Beam Is Fabricated By Bolting Together Three Members The Cross Sectional Dimensions Are Shown The 6 Mm Diamet 1
A Wooden Beam Is Fabricated By Bolting Together Three Members The Cross Sectional Dimensions Are Shown The 6 Mm Diamet 1 (28.11 KiB) Viewed 37 times

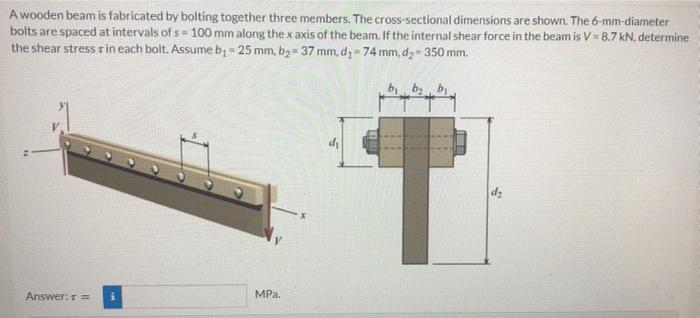

A wooden beam is fabricated by bolting together three members. The cross-sectional dimensions are shown. The 6-mm-diameter bolts are spaced at intervals of s - 100 mm along the x axis of the beam. If the internal shear force in the beam is V = 8.7 kN, determine the shear stress in each bolt. Assume b = 25 mm, by - 37 mm,d; = 74 mm, d = 350 mm. d Answer: T = MPa.
