The cantilever beam shown is subjected to a concentrated load of P-46800 lb. The cross sectional dimensions and the mome

Post by answerhappygod »

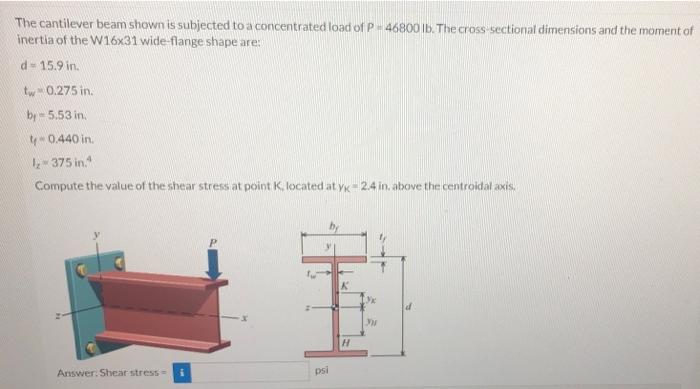

The Cantilever Beam Shown Is Subjected To A Concentrated Load Of P 46800 Lb The Cross Sectional Dimensions And The Mome 1
The Cantilever Beam Shown Is Subjected To A Concentrated Load Of P 46800 Lb The Cross Sectional Dimensions And The Mome 1 (34.23 KiB) Viewed 54 times
The cantilever beam shown is subjected to a concentrated load of P-46800 lb. The cross sectional dimensions and the moment of inertia of the W16x31 wide-flange shape are: d - 15.9 in. tw 0.275 in. by 5.53 in 4*0.440 in 1,375 in. Compute the value of the shear stress at point k located at 2.4 in. above the centroidal axis H Answer. Shear stress psi
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
