A wooden box beam is fabricated from four boards, which are fastened together with screws. Each screw can provide a resi

Post by answerhappygod »

A Wooden Box Beam Is Fabricated From Four Boards Which Are Fastened Together With Screws Each Screw Can Provide A Resi 1
A Wooden Box Beam Is Fabricated From Four Boards Which Are Fastened Together With Screws Each Screw Can Provide A Resi 1 (24.3 KiB) Viewed 40 times

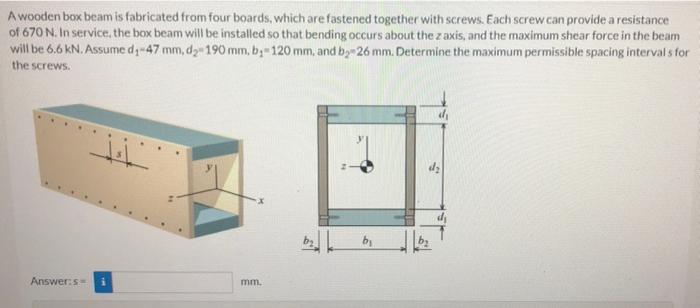

A wooden box beam is fabricated from four boards, which are fastened together with screws. Each screw can provide a resistance of 670 N. In service, the box beam will be installed so that bending occurs about the z axis, and the maximum shear force in the beam will be 6.6 kN. Assumed 2-47mm, dz. 190 mm, b 120 mm, and by-26 mm. Determine the maximum permissible spacing intervals for the screws. de bi Answers mm.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
