A0.5625-in diameter solid steel shaft supports loads PA= 230 lb and Po= 230 lb. Assume 23 - 23 in. L2 = 5.3 in. and 13 =
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
A0.5625-in diameter solid steel shaft supports loads PA= 230 lb and Po= 230 lb. Assume 23 - 23 in. L2 = 5.3 in. and 13 =

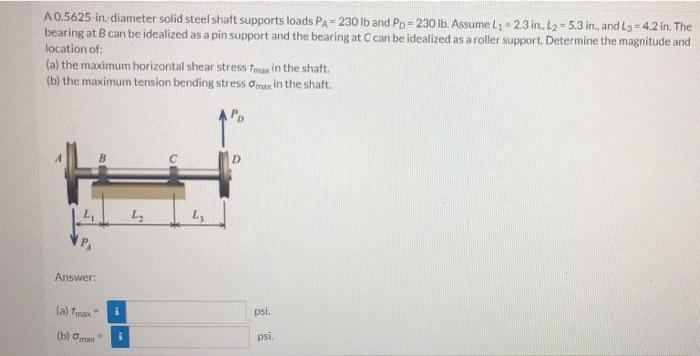

A0.5625-in diameter solid steel shaft supports loads PA= 230 lb and Po= 230 lb. Assume 23 - 23 in. L2 = 5.3 in. and 13 = 4.2 in. The bearing at B can be idealized as a pin support and the bearing at C can be idealized as a roller support. Determine the magnitude and location of: (a) the maximum horizontal shear stress Tmax in the shaft. (b) the maximum tension bending stress. Omax in the shaft. A PO L Answer: (a) max psi. (5) Om psi
