- The Cross Sectional Dimensions Of The Beam Shown In The Figure Are A 4 7 In B 6 2 In D 4 7 In And T 0 34 In T 1 (35.01 KiB) Viewed 58 times
The cross-sectional dimensions of the beam shown in the figure are a = 4.7 in., b: 6.2 in.,d - 4.7 in., and t=0.34 in. T
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
The cross-sectional dimensions of the beam shown in the figure are a = 4.7 in., b: 6.2 in.,d - 4.7 in., and t=0.34 in. T

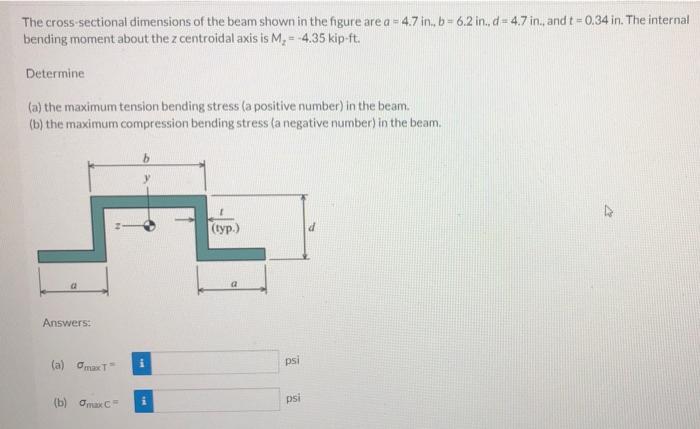

The cross-sectional dimensions of the beam shown in the figure are a = 4.7 in., b: 6.2 in.,d - 4.7 in., and t=0.34 in. The internal bending moment about the z centroidal axis is M. - -4.35 kip.ft. Determine (a) the maximum tension bending stress (a positive number) in the beam. (b) the maximum compression bending stress (a negative number) in the beam. (typ.) d a Answers: (a) Omax psi (b) Oaxc osi
