Problem (1) Consider the shown plane truss. Take: EA= 107 lb for all members, P= 1,000 lb, and L = 20 in. 5 L S 4 4 60°

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Problem (1) Consider the shown plane truss. Take: EA= 107 lb for all members, P= 1,000 lb, and L = 20 in. 5 L S 4 4 60°

Post by answerhappygod »

Problem 1 Consider The Shown Plane Truss Take Ea 107 Lb For All Members P 1 000 Lb And L 20 In 5 L S 4 4 60 1
Problem 1 Consider The Shown Plane Truss Take Ea 107 Lb For All Members P 1 000 Lb And L 20 In 5 L S 4 4 60 1 (108.3 KiB) Viewed 55 times

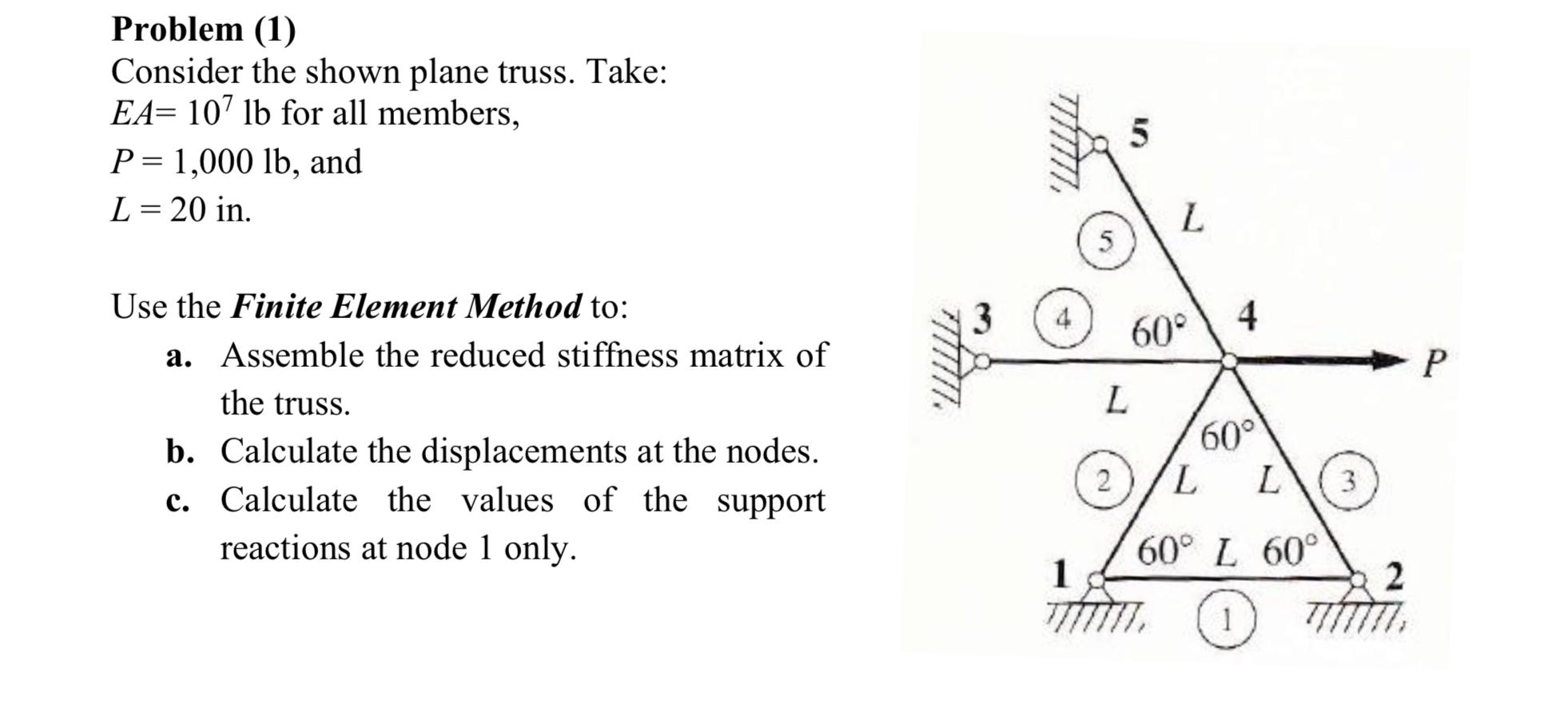

Problem (1) Consider the shown plane truss. Take: EA= 107 lb for all members, P= 1,000 lb, and L = 20 in. 5 L S 4 4 60° Р Use the Finite Element Method to: a. Assemble the reduced stiffness matrix of the truss. b. Calculate the displacements at the nodes. c. Calculate the values of the support reactions at node 1 only. L 60° (2/2 L L 60° L 60° 1 TTTT 2 1
