The steel beam has the cross section shown. The beam length is L 4.9 m, and the cross-sectional dimensions are d = 310 m

Post by answerhappygod »

The Steel Beam Has The Cross Section Shown The Beam Length Is L 4 9 M And The Cross Sectional Dimensions Are D 310 M 1
The Steel Beam Has The Cross Section Shown The Beam Length Is L 4 9 M And The Cross Sectional Dimensions Are D 310 M 1 (28.41 KiB) Viewed 52 times

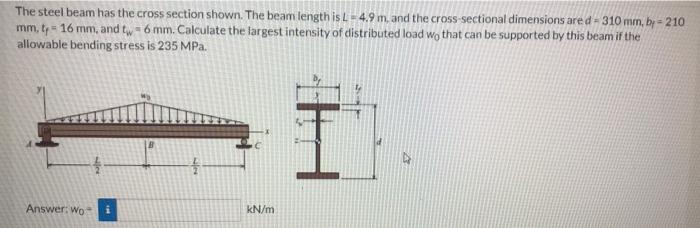

The steel beam has the cross section shown. The beam length is L 4.9 m, and the cross-sectional dimensions are d = 310 mm, b = 210 mm, t - 16 mm, and tw = 6 mm. Calculate the largest intensity of distributed load we that can be supported by this beam if the allowable bending stress is 235 MPa. Answer: Wo kN/m
