PROBLEM NO. 2 (50 POINTS): Given the following data: • H1 = 3.9 +0.1(second to the last digit ID number) m • H = 8 + 0.1

[answerhappygod]

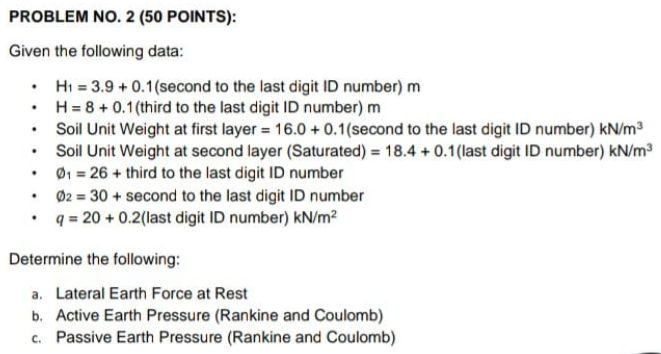

Problem No 2 50 Points Given The Following Data H1 3 9 0 1 Second To The Last Digit Id Number M H 8 0 1 1 (244.55 KiB) Viewed 43 times

PROBLEM NO. 2 (50 POINTS): Given the following data: • H1 = 3.9 +0.1(second to the last digit ID number) m • H = 8 + 0.1(third to the last digit ID number) m • Soil Unit Weight at first layer = 16.0 +0.1(second to the last digit ID number) kN/m3 Soil Unit Weight at second layer (Saturated) = 18.4 +0.1 (last digit ID number) kN/m3 • 01 = 26 + third to the last digit ID number Ø2 = 30 + second to the last digit ID number q = 20 +0.2(last digit ID number) kN/m2 . . . . Determine the following: a. Lateral Earth Force at Rest b. Active Earth Pressure (Rankine and Coulomb) c. Passive Earth Pressure (Rankine and Coulomb)
