1. For the state of plane stress shown in Fig. 1, determine (a) the principal planes, (b) the principal stresses, (c) th

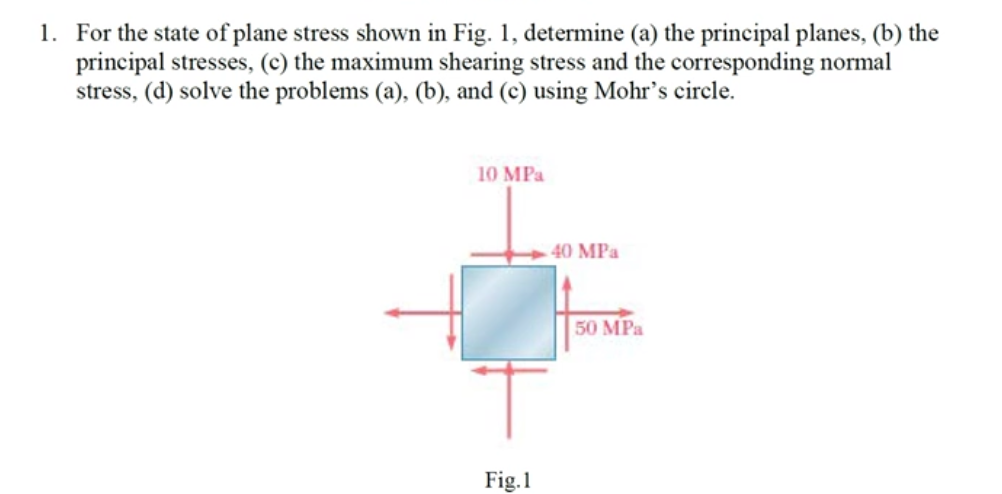

1. For the state of plane stress shown in Fig. 1, determine (a) the principal planes, (b) the principal stresses, (c) the maximum shearing stress and the corresponding normal stress, (d) solve the problems (a), (b), and (c) using Mohr's circle. 10 MPa 40 MPa 50 MPa Fig. 1
