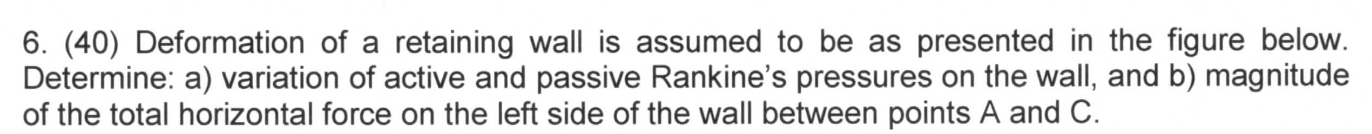

6. (40) Deformation of a retaining wall is assumed to be as presented in the figure below. Determine: a) variation of active and passive Rankine's pressures on the wall, and b) magnitude of the total horizontal force on the left side of the wall between points A and C.

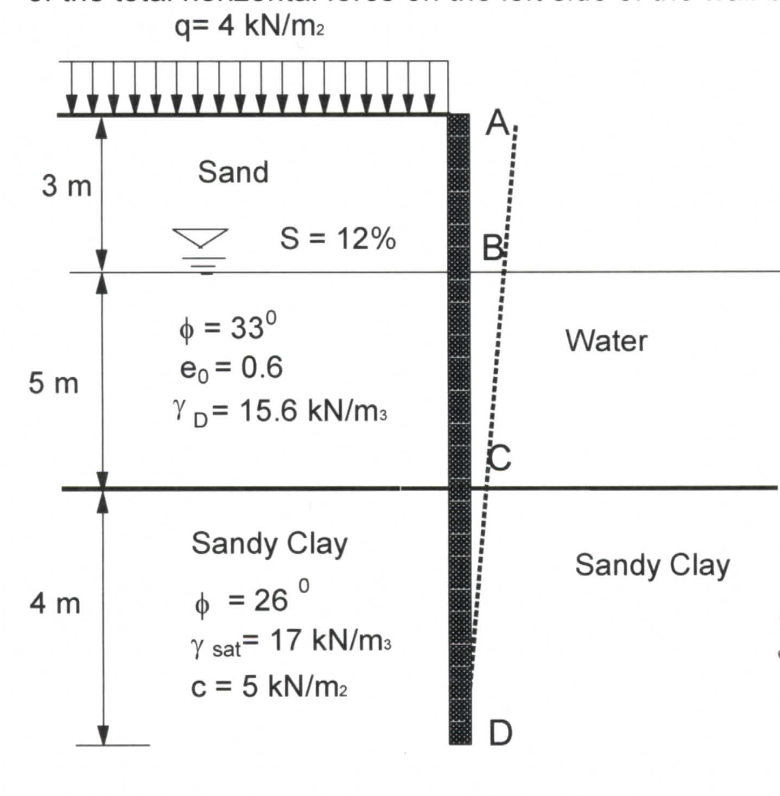

q= 4 kN/m2 A: 3 m Sand S = 12% B = 0 = 33° eo = 0.6 Water 5 m Yo= 15.6 kN/m3 D Q. Sandy Clay Sandy Clay 0 4 m 0 = 26 Y sat= 17 kN/m c= 5 kN/m2 D
