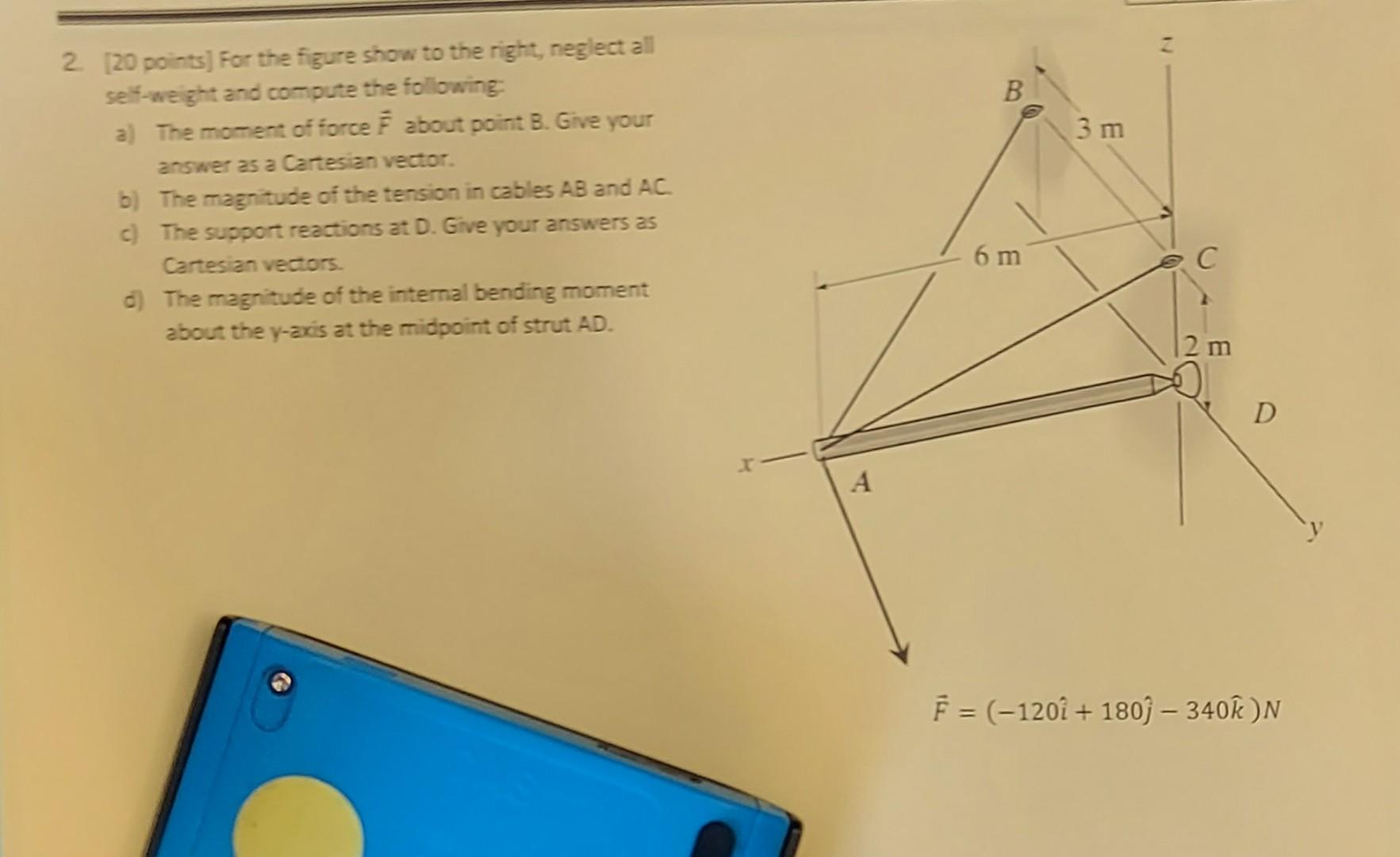

B 3 m 2. (20 points) For the figure show to the right, neglect all self-weight and compute the following a) The moment of force F about point B. Give your answer as a Cartesian vector. b) The magnitude of the tension in cables AB and AC c) The support reactions at D. Give your answers as Cartesian vectors. .) The magnitude of the internal bending moment about the y-axis at the midpoint of strut AD. 6 m C 2 m D A F = (–120 + 180) – 340 )N =
