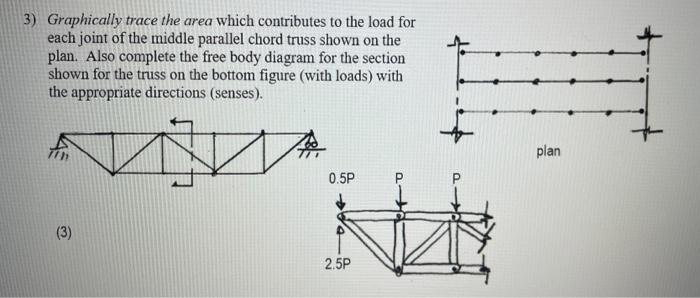

3) Graphically trace the area which contributes to the load for each joint of the middle parallel chord truss shown on the plan. Also complete the free body diagram for the section shown for the truss on the bottom figure (with loads) with the appropriate directions (senses). plan 0.5P P WA (3) 2.5P
