Problem 1 - In the figure below, the views indicated by the balloons are to be changed to half section views as indicate

[answerhappygod]

Problem 1 In The Figure Below The Views Indicated By The Balloons Are To Be Changed To Half Section Views As Indicate 1 (66.32 KiB) Viewed 32 times

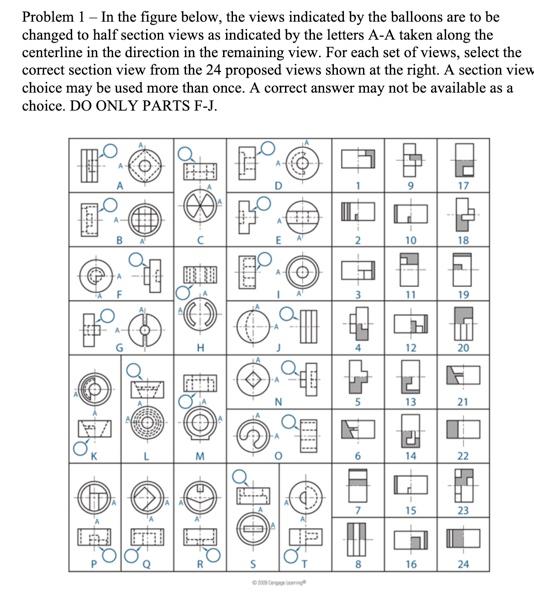

Problem 1 - In the figure below, the views indicated by the balloons are to be changed to half section views as indicated by the letters A-A taken along the centerline in the direction in the remaining view. For each set of views, select the correct section view from the 24 proposed views shown at the right. A section view choice may be used more than once. A correct answer may not be available as a choice. DO ONLY PARTS F-J. 9 17 L. H CER 2 10 18 는 11 19 母 A OT 4 SO H 12 20 S 13 21 OK M 14 22 B (日 15 23 חווה 16 24
