Part A A flow of 60 m3/s passes under the sluice gate. Suppose that y1 = 6 m. (Figure 1) If the flow is supercritical, d

[answerhappygod]

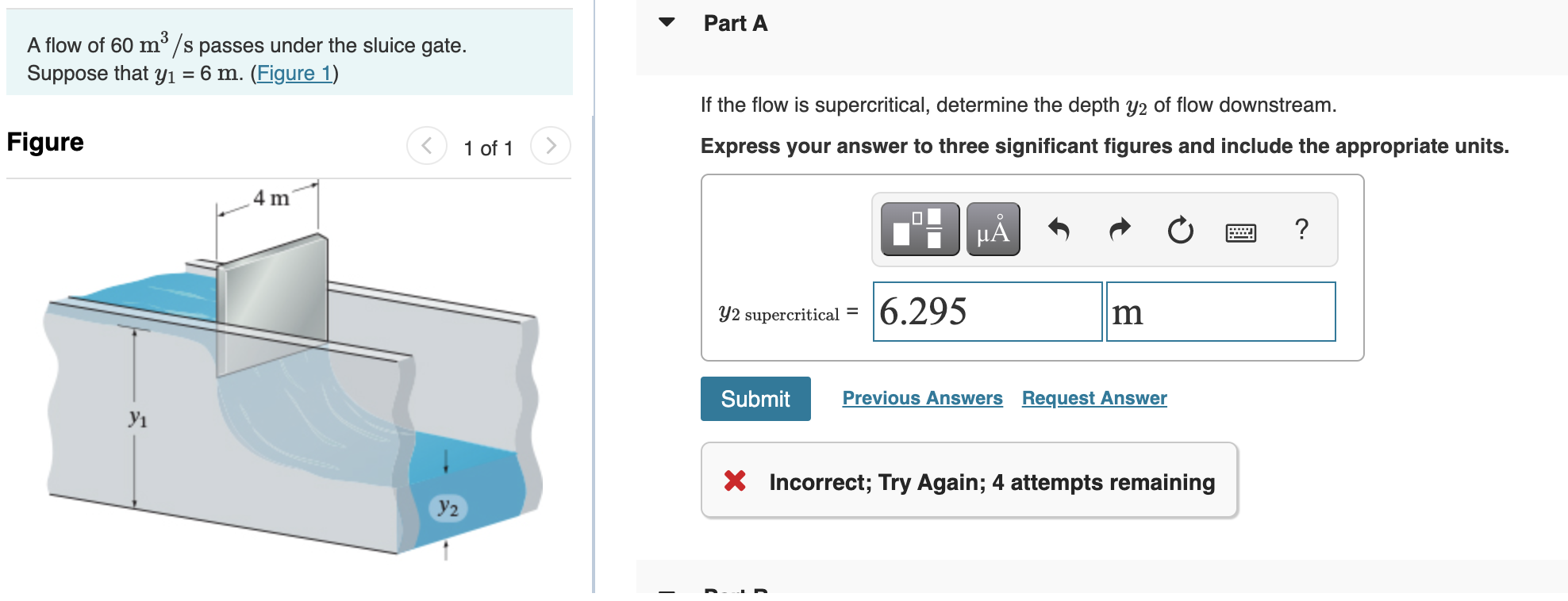

Part A A Flow Of 60 M3 S Passes Under The Sluice Gate Suppose That Y1 6 M Figure 1 If The Flow Is Supercritical D 1 (256.08 KiB) Viewed 41 times

Part A A flow of 60 m3/s passes under the sluice gate. Suppose that y1 = 6 m. (Figure 1) If the flow is supercritical, determine the depth y2 of flow downstream. Express your answer to three significant figures and include the appropriate units. Figure 1 of 1 4 m uả ...] ? Y2 supercritical = 6.295 m Submit Previous Answers Request Answer Yi X Incorrect; Try Again; 4 attempts remaining y2
Part B If the flow is subcritical, determine the depth y2 of flow downstream. Express your answer to three significant figures and include the appropriate units. μΑ ? Y2 subcritical = Value Units Submit Previous Answers Request Answer X Incorrect; Try Again; 4 attempts remaining
Part C What is the maximum volumetric flow that can pass through the gate? Express your answer to three significant figures and include the appropriate units. på ? Qmax = Value Units Submit Request Answer
