VI) For the mechanism shown in the figure: a) Determine the magnitude of the velocity at point C. (2 points) b) Determin

Post by answerhappygod »

Vi For The Mechanism Shown In The Figure A Determine The Magnitude Of The Velocity At Point C 2 Points B Determin 1

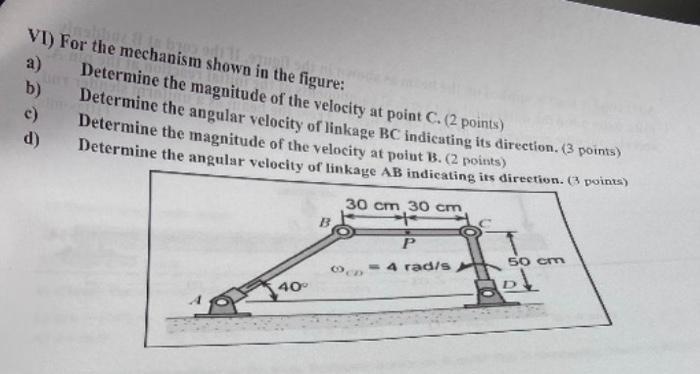

Vi For The Mechanism Shown In The Figure A Determine The Magnitude Of The Velocity At Point C 2 Points B Determin 1 (31.61 KiB) Viewed 42 times
VI) For the mechanism shown in the figure: a) Determine the magnitude of the velocity at point C. (2 points) b) Determine the angular velocity of linkage BC indicating its direction. (3 points) e) Determine the magnitude of the velocity at point B. (2 points) d) Determine the angular velocity of linkage AB indicating its direction points 30 cm 30 cm B - 50 cm OR = 4 rad/s 40-
