Problem 6.28 < 5 of 9 Review Part A Consider the truss shown in (Figure 1). Suppose that F = 40 kN and F2 = 20 KN Determ

[answerhappygod]

Problem 6 28 5 Of 9 Review Part A Consider The Truss Shown In Figure 1 Suppose That F 40 Kn And F2 20 Kn Determ 1 (111.3 KiB) Viewed 70 times

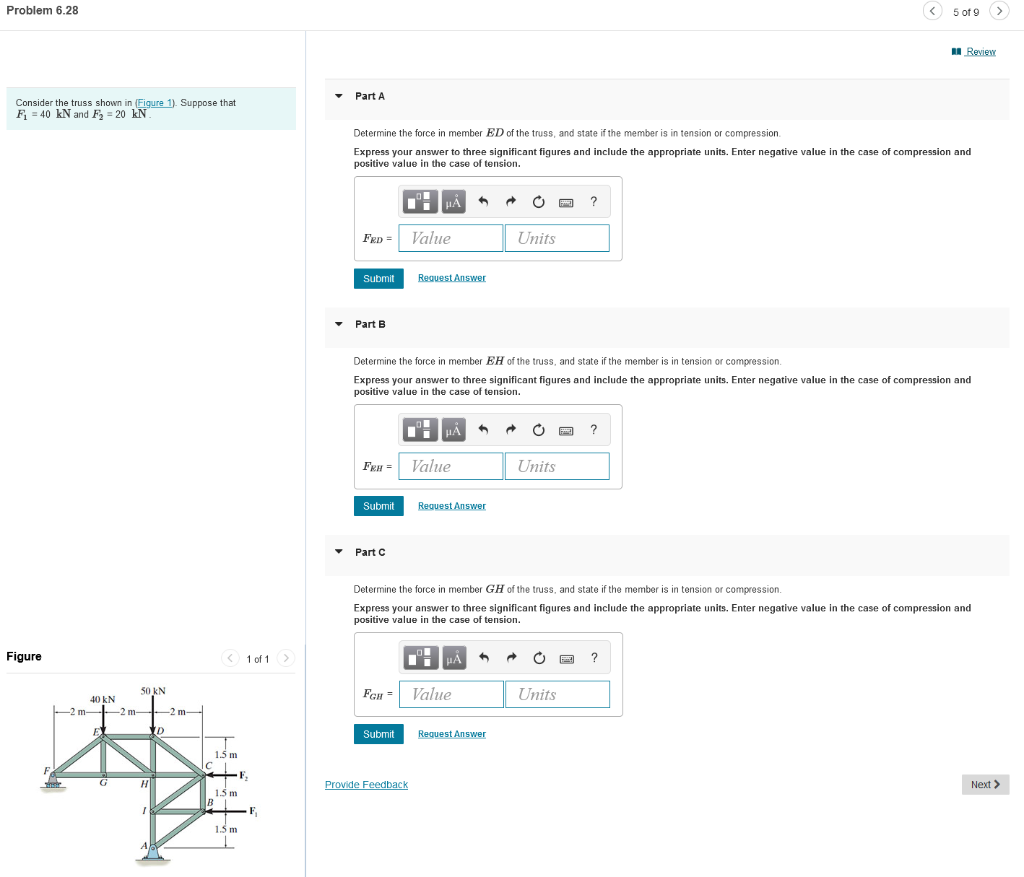

Problem 6.28 < 5 of 9 Review Part A Consider the truss shown in (Figure 1). Suppose that F = 40 kN and F2 = 20 KN Determine the force in member ED of the truss, and state if the member is in tension or compression Express your answer to three significant figures and include the appropriate units. Enter negative value in the case of compression and positive value in the case of tension. . PÅ ? FED = Value Units Submit Request Answer Part B Determine the force in member EH of the truss, and state if the member is in tension or compression. Express your answer to three significant figures and include the appropriate units. Enter negative value in the case of compression and positive value in the case of tension. HA ? ? Fer= Value Units Submit Request Answer Part Determine the force in member GH of the truss, and state if the member is in tension or compression. . Express your answer to three significant figures and include the appropriate units. Enter negative value in the case of compression and positive value in the case of tension. Figure < 1 of 1 > μΑ ? SO KN 40 KN -2 2 m2 m2m- Units FGH = Value D Submit Request Answer 1.5 m H Provide Feedback Next > E, 1.5 m B E 1 1.5m
