The figure shown below is a hollow pre-cast beam designed for a shopping mart somewhere in Cubao. This beam has a simple

Post by answerhappygod »

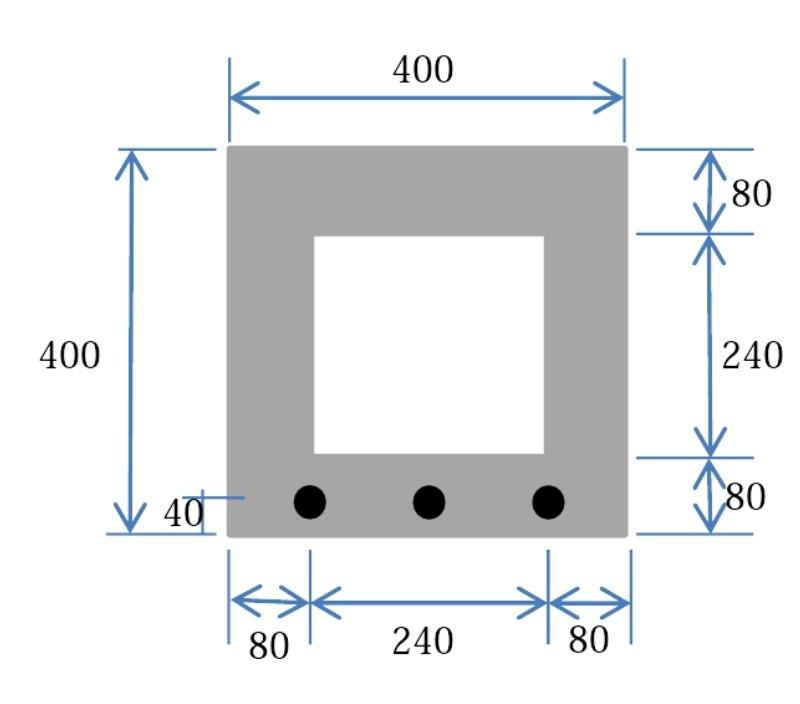

The figure shown below is a hollow pre-cast beam designed for a shopping mart somewhere in Cubao. This beam has a simple span of 10m and carries a dead load of 2350 N/m (including its weight) and a live load of 5490 N/m. Determine the stress diagram for the beam if it is subjected to a prestressing force of 353 KN applied at 40mm above the bottom of the beam.
The Figure Shown Below Is A Hollow Pre Cast Beam Designed For A Shopping Mart Somewhere In Cubao This Beam Has A Simple 1
The Figure Shown Below Is A Hollow Pre Cast Beam Designed For A Shopping Mart Somewhere In Cubao This Beam Has A Simple 1 (29.56 KiB) Viewed 43 times
400 180 400 240 180 40 80 240 80
