11. Determine the required information below for the short spur road shown. Note that the PC and PT station are for the

Post by answerhappygod »

11 Determine The Required Information Below For The Short Spur Road Shown Note That The Pc And Pt Station Are For The 1
11 Determine The Required Information Below For The Short Spur Road Shown Note That The Pc And Pt Station Are For The 1 (30.66 KiB) Viewed 41 times

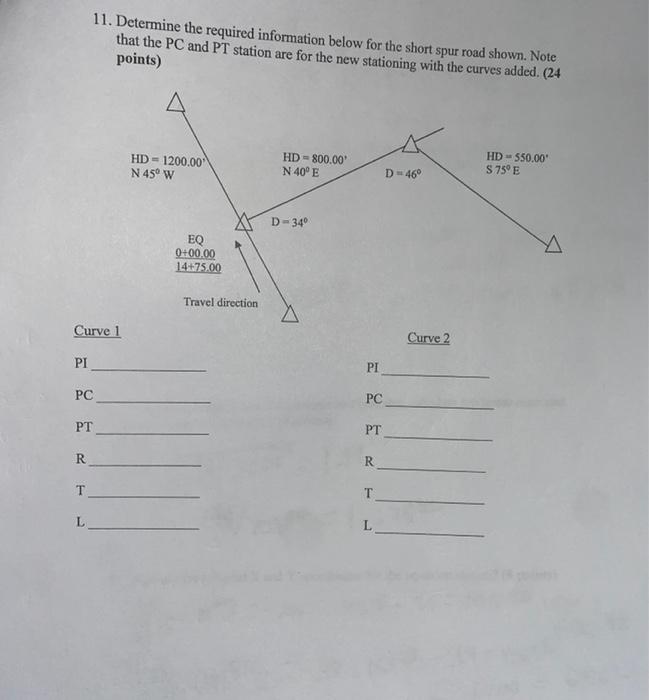

11. Determine the required information below for the short spur road shown. Note that the PC and PT station are for the new stationing with the curves added. (24 points) HD = 1200.00 N 450 W HD = 800.00 N 40° E HD - 550.000 S 75°E D 46° A D-340 EQ 0+00.00 14+75.00 x Travel direction Curve 1 Curve 2 PI PI PC PC PT PT R R T T L L
