For the shaft shown in the figure, calculate the maximum shear stress. The diameter of the steel shaft is 35mm throughou

Post by answerhappygod »

For The Shaft Shown In The Figure Calculate The Maximum Shear Stress The Diameter Of The Steel Shaft Is 35mm Throughou 1
For The Shaft Shown In The Figure Calculate The Maximum Shear Stress The Diameter Of The Steel Shaft Is 35mm Throughou 1 (135.45 KiB) Viewed 44 times

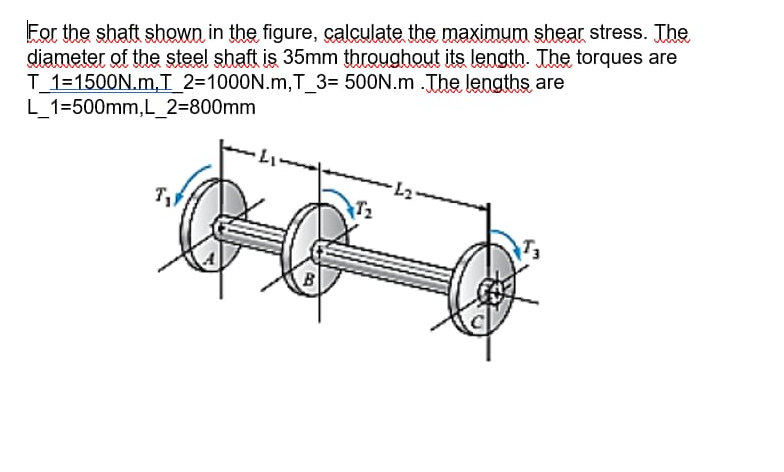

For the shaft shown in the figure, calculate the maximum shear stress. The diameter of the steel shaft is 35mm throughout its length. The torques are T_1=1500N.m.I_2=1000N.m,T_3= 500N.m .The lengths are L_1=500mm,L_2=800mm 7 L2 T2 B
