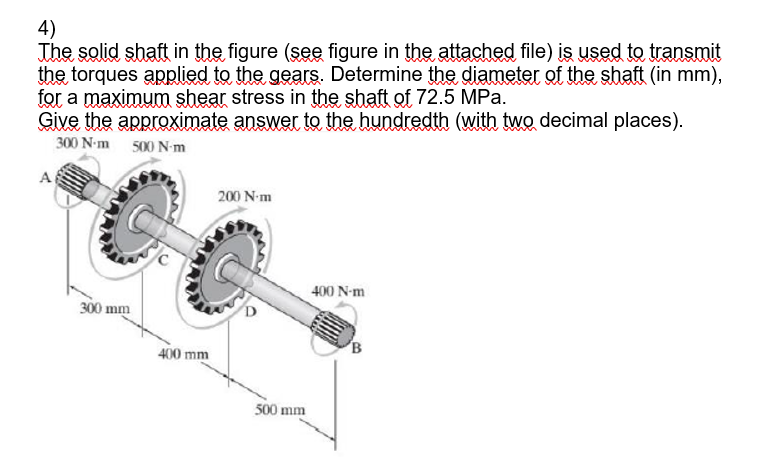

4) The solid shaft in the figure (see figure in the attached file) is used to transmit the torques applied to the gears. Determine the diameter of the shaft (in mm), for a maximum shear stress in the shaft of 72.5 MPa. Give the approximate answer to the hundredth (with two decimal places). 300 N·m 500 Nm 200 Nm 400 Nm 300 mm 400 mm B 500 mm
4) The solid shaft in the figure (see figure in the attached file) is used to transmit the torques applied to the gears. Determine the diameter of the shaft (in mm), for a maximum shear stress in the shaft of 72.5 MPa. Give the approximate answer to the hundredth (with two decimal places). 300 N·m 500 Nm 200 Nm 400 Nm 300 mm 400 mm B 500 mm
