Question 3 (35%) Use a ruler to prepare the required FBDs for the frame to determine the following: a) Reactions at pin

[answerhappygod]

Question 3 35 Use A Ruler To Prepare The Required Fbds For The Frame To Determine The Following A Reactions At Pin 1 (38.81 KiB) Viewed 46 times

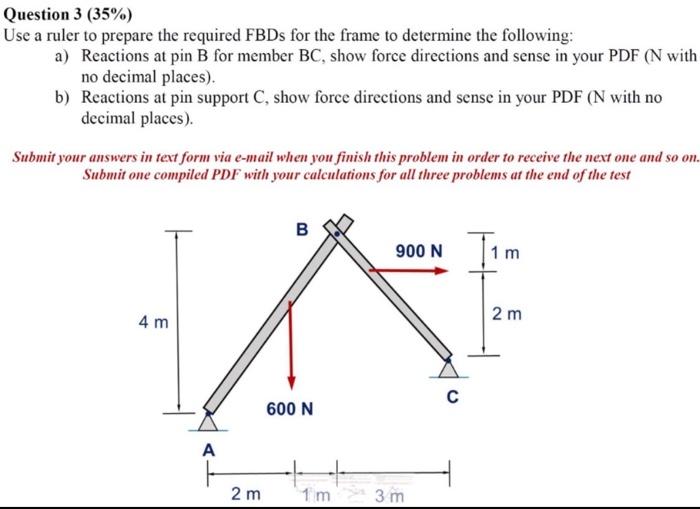

Question 3 (35%) Use a ruler to prepare the required FBDs for the frame to determine the following: a) Reactions at pin B for member BC, show force directions and sense in your PDF (N with no decimal places). b) Reactions at pin support C, show force directions and sense in your PDF (N with no decimal places). Submit your answers in text form via e-mail when you finish this problem in order to receive the next one and so on. Submit one compiled PDF with your calculations for all three problems at the end of the test B 900 N FH 1 m 4 m 2 m с 600 N A 2 m 1 m 3 m
