9 kips per linear foot (shown as X) is the uniform load on a truss (due to the weight of the roof and rainwater). The tr
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
9 kips per linear foot (shown as X) is the uniform load on a truss (due to the weight of the roof and rainwater). The tr

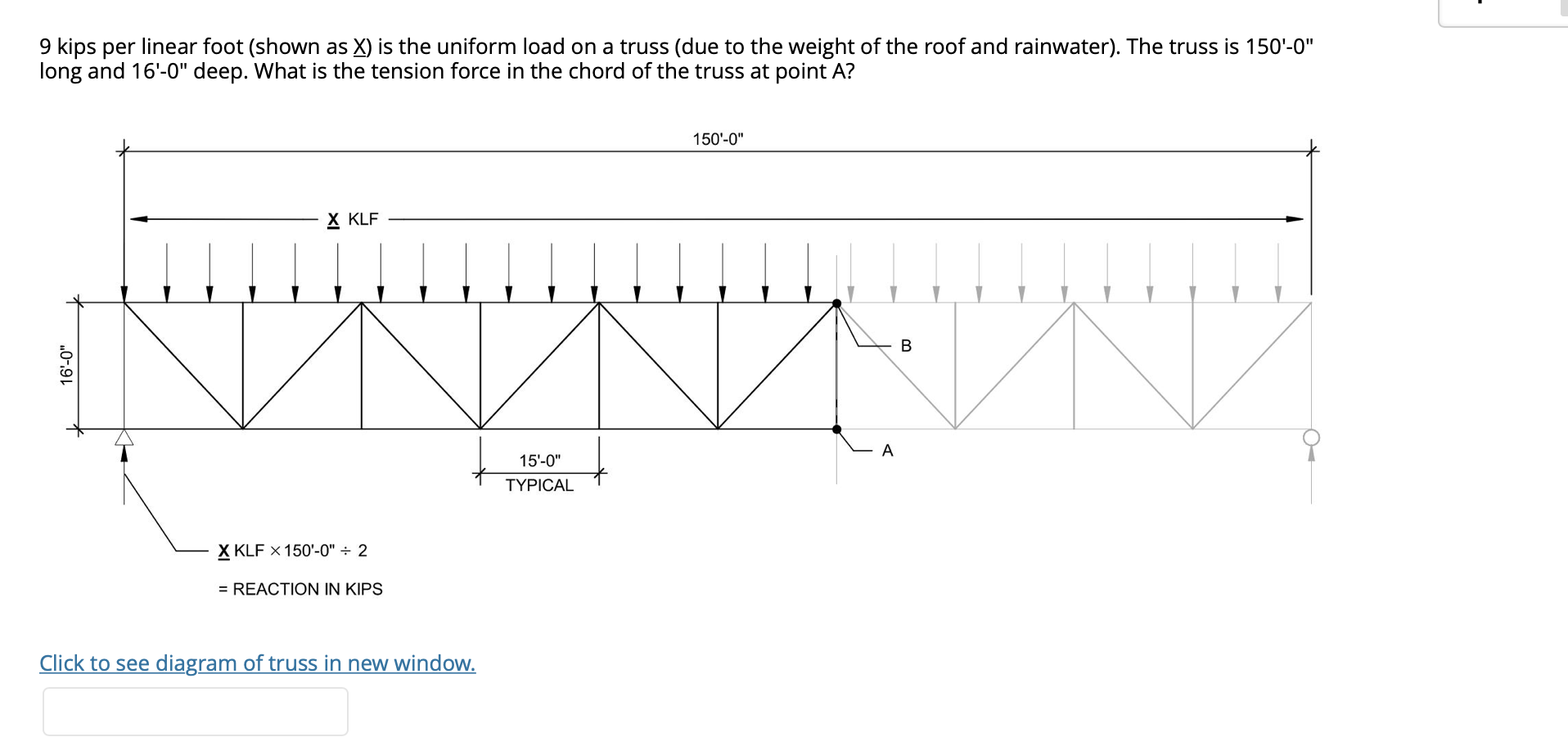

9 kips per linear foot (shown as X) is the uniform load on a truss (due to the weight of the roof and rainwater). The truss is 150'-0" long and 16'-0" deep. What is the tension force in the chord of the truss at point A? 150'-0" X KLF B 16'-0" A 15'-0" TYPICAL X KLF X 150'-0" = 2 = REACTION IN KIPS Click to see diagram of truss in new window.
