Problem 4 (2 points) A frame and its moment diagram are shown below. There is a pin at A and a roller at D. Draw a caref

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Problem 4 (2 points) A frame and its moment diagram are shown below. There is a pin at A and a roller at D. Draw a caref

Post by answerhappygod »

Problem 4 2 Points A Frame And Its Moment Diagram Are Shown Below There Is A Pin At A And A Roller At D Draw A Caref 1
Problem 4 2 Points A Frame And Its Moment Diagram Are Shown Below There Is A Pin At A And A Roller At D Draw A Caref 1 (20.54 KiB) Viewed 38 times

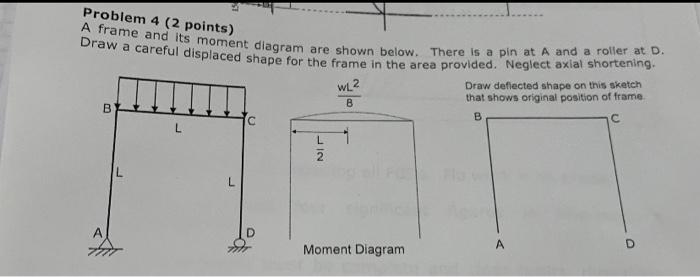

Problem 4 (2 points) A frame and its moment diagram are shown below. There is a pin at A and a roller at D. Draw a careful displaced shape for the frame in the area provided. Neglect axial shortening. Draw deflected shape on this sketch B that shows original position of frame B B с WL2 NI Moment Diagram A
