The upper jaw D of the toggle press slides with negligible frictional resistance along the fixed vertical column. Calcul

Post by answerhappygod »

The Upper Jaw D Of The Toggle Press Slides With Negligible Frictional Resistance Along The Fixed Vertical Column Calcul 1
The Upper Jaw D Of The Toggle Press Slides With Negligible Frictional Resistance Along The Fixed Vertical Column Calcul 1 (48.26 KiB) Viewed 90 times

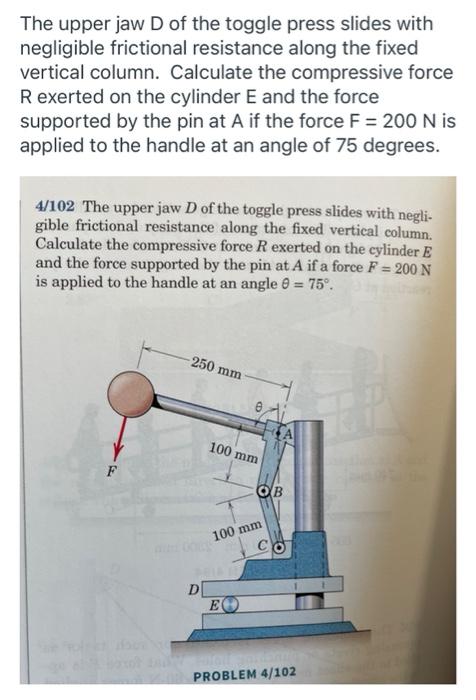

The upper jaw D of the toggle press slides with negligible frictional resistance along the fixed vertical column. Calculate the compressive force Rexerted on the cylinder E and the force supported by the pin at A if the force F= 200 N is applied to the handle at an angle of 75 degrees. 4/102 The upper jaw D of the toggle press slides with negli gible frictional resistance along the fixed vertical column. Calculate the compressive force R exerted on the cylinder E and the force supported by the pin at A if a force F= 200 N is applied to the handle at an angle 0 = 75°. - 250 mm 100 mm F OB 100 mm C D E PROBLEM 4/102
