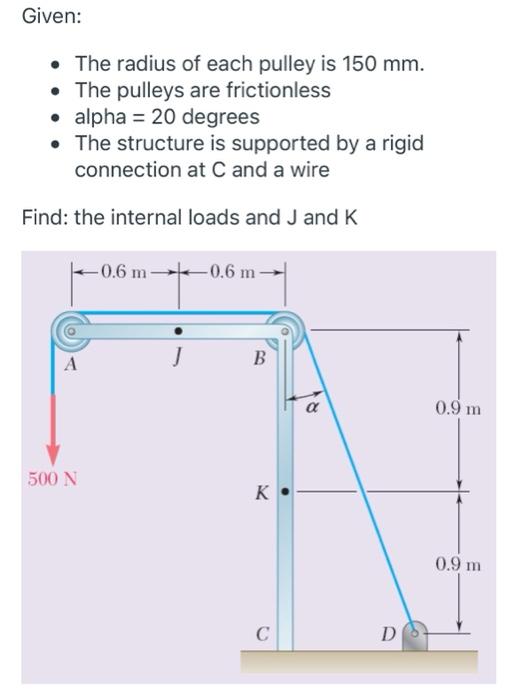

Given: • The radius of each pulley is 150 mm. • The pulleys are frictionless • alpha = 20 degrees • The structure is supported by a rigid connection at C and a wire Find: the internal loads and J and K -0.6 m-0.6 m C J B α 0.9 m 500 N K 0.9 m C ᎠᏱ . D
